12 Fiber Optic Terminal Box / Digital Video Terminals
12 Fiber Optic Terminal Box / Digital Video Terminals
Sale
Sold out
Pre-order
Regular price
R 649.00
Regular price
Sale price
R 649.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description

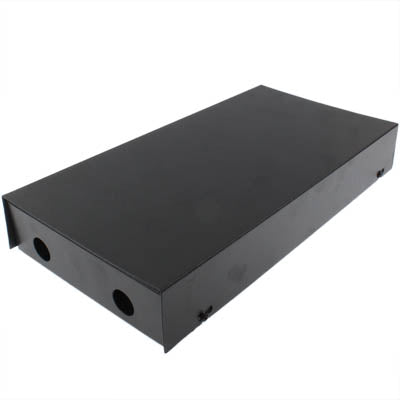

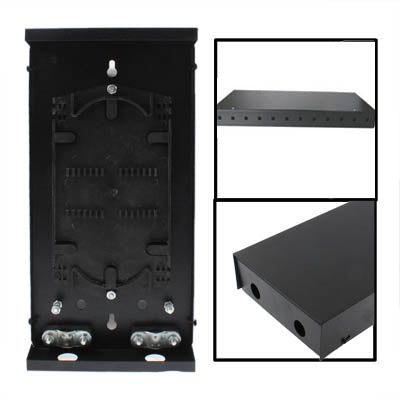

The 12 Fiber Optic Terminal Box is designed for the organization and protection of fiber optic cables. It is suitable for use in various network systems, including data and image transmission systems.
- Operating temperature: -25 to +40 degrees Celsius
- Relative humidity: ≤ 85% at 30 degrees Celsius
- Atmospheric pressure: 70 kPa - 106 kPa
- Insulation resistance: > 2 x 10^4 Milliohm
- Dielectric strength: 15 kV DC voltage for 1 minute without breakdown
- Supports two-cable configurations with fiber optic cable holders
- Functions as a connection point for fiber optic cables, pigtails, and jumpers
- Includes redundancy capacity plate for protection
- Disk fiber plate allows for easy adjustment during construction
- Marked disk fiber plate for easy identification
- Radius of curvature control for fiber pigtails and patch cords above 3.75 cm
- Mounting via screws for wall installation
- Constructed from cold-rolled steel with electrostatic spray finish
- Applications include city networks, agricultural networks, and CATV systems
