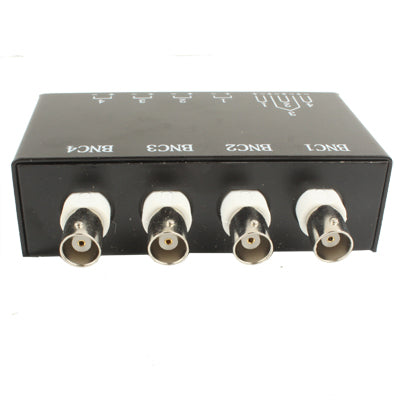

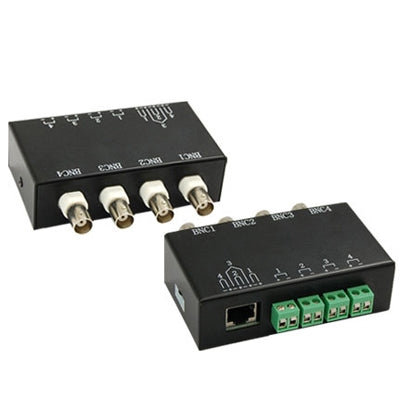

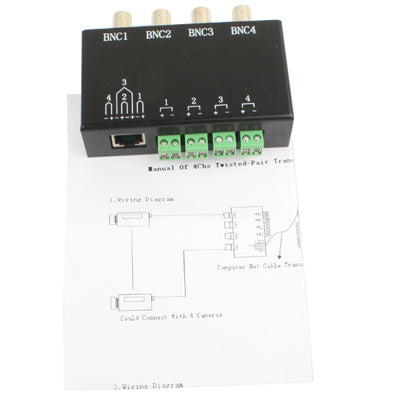

4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver
4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver is a video balun designed for video signal transmission. It is suitable for 4 channel systems and can transmit video signals over UTP LAN cable up to 300 meters.
- Product Type: Video Balun
- Compatibility: 4 Channel Systems
- Material: Metal
- Design: Passive (no power required)
- Intended Use: Video signal transmission
- Input: BNC-video

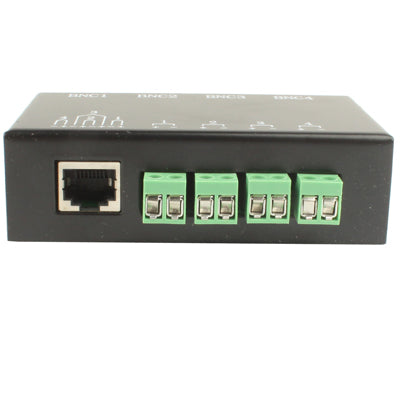

- Output: One RJ45 for each of the 4 channels (Pin 1-2 ch1, Pin 4-5 ch2, pin 3-6 ch3, pin 7-8 ch4)
- Output: Four screw outputs for 4 channels
- Maximum Working Distance: 300 meters for color video
- Coaxial Cable Comparison: Superior to coaxial cable (100 meters)
- Dimensions: 96 x 80 x 30 mm
- Weight: 257 g
Questions about features, compatibility, or warranty? Chat with our local support team!
