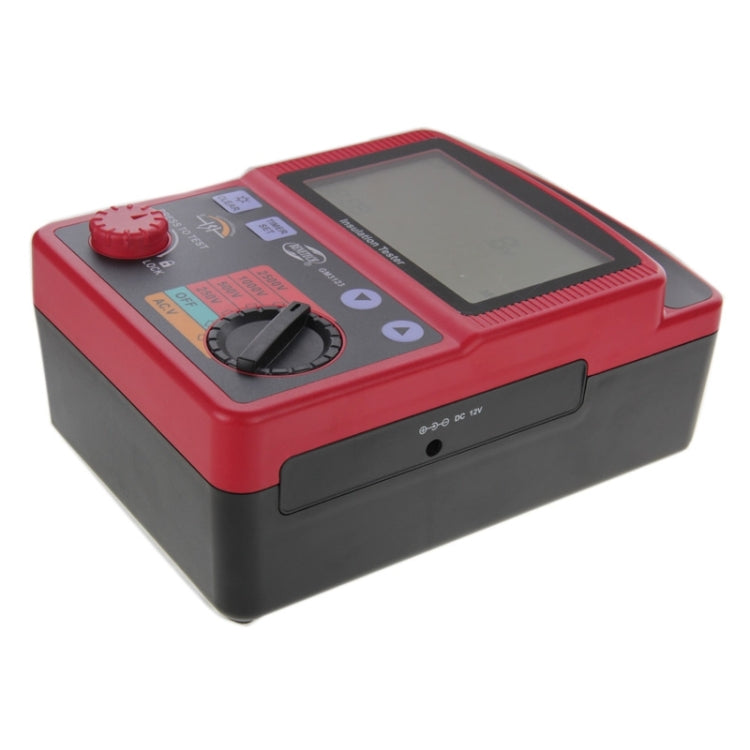

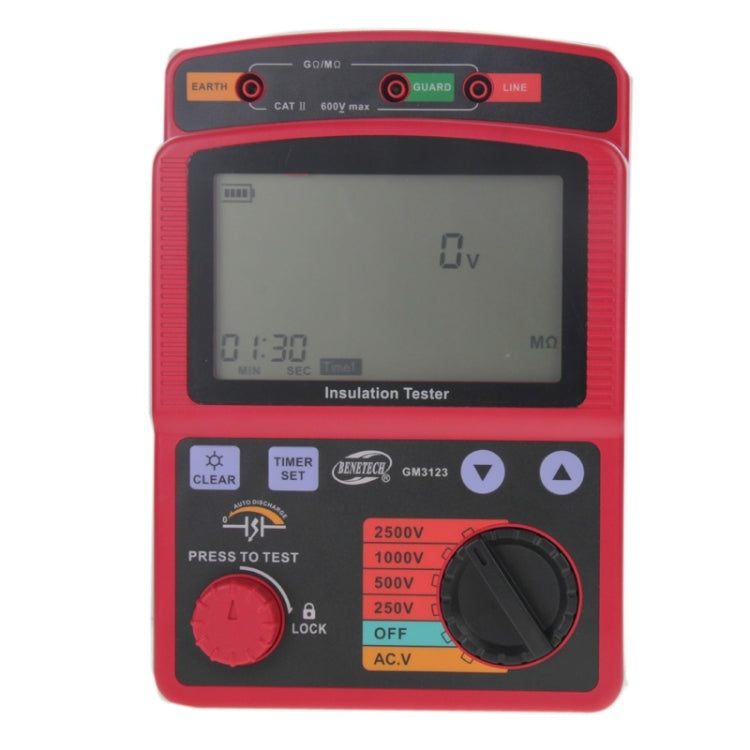

BENETECH GM3123 High Voltage Insulation Tester

Name: BENETECH GM3123 High Voltage Insulation Tester
Brand: BENETECH
SKU: S-HC-0544
Price: 3859.00 ZAR
Availability: InStock

R 3,859.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features
1. Auto discharge function to make the operation safe
2. LCD backlight
3. Digital readout display
4. Live circuit warning symbols with audio sounds
5. Anto power off function (in 10 minutes without operation)
6. Timer measurement function
7. Low battery indication
8. Suitable for 12V DC adapter (12V / 1A)

Specifications
1. Display: Max. 999 counts LCD display (1000 counts only at 1T is displayed) Bar graph / max. 36 points.
2. Over range indication: OL mark appears on insulation resistance range. LO mark appears on voltage range
3. Auto-ranging: Range shifts to upper range: 1000 counts. Range shifts to lower range: 95 counts (merely on the insulation resistance range)
4. Sample rate: 0.5-10 times / sec
5. Operable altitude: Less than 2000m (Indoor use)
6. Operation circumstance: Temperature 0-40 Celsius Degree, humidity: <=85%
7. Storage circumstance: Temperature -20-60 Celsius Degree, humidity: <=90%
8. Overload protection: Insulation resistance: AC 1200V / 10s, Voltage: AC 720V / 10s
9. Voltage resistance: AC8320 (50/60Hz)/5 seconds (between electrical circuit and enclosure)
10. Insulation resistance: 1000M of more / DC 1000V (between electrical circuit and enclosure)

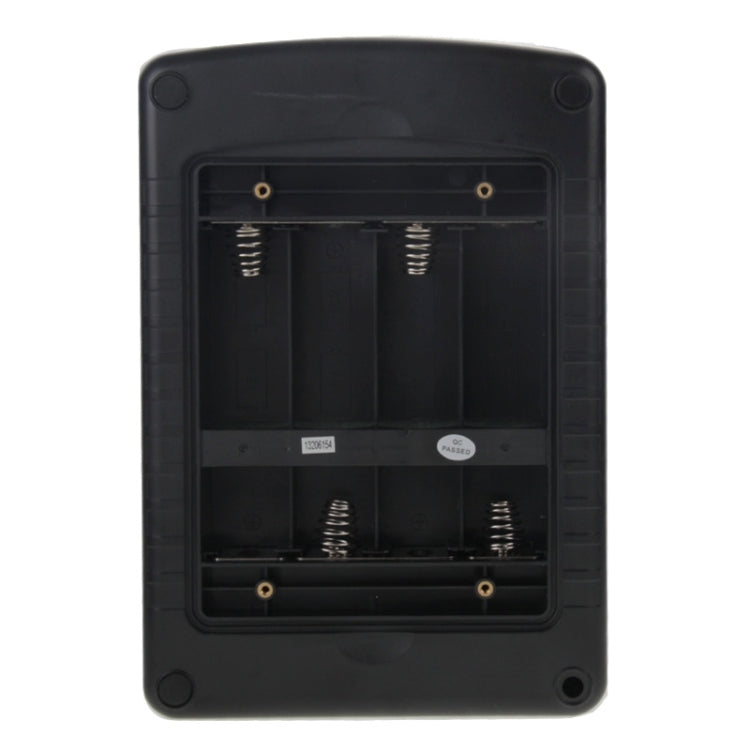

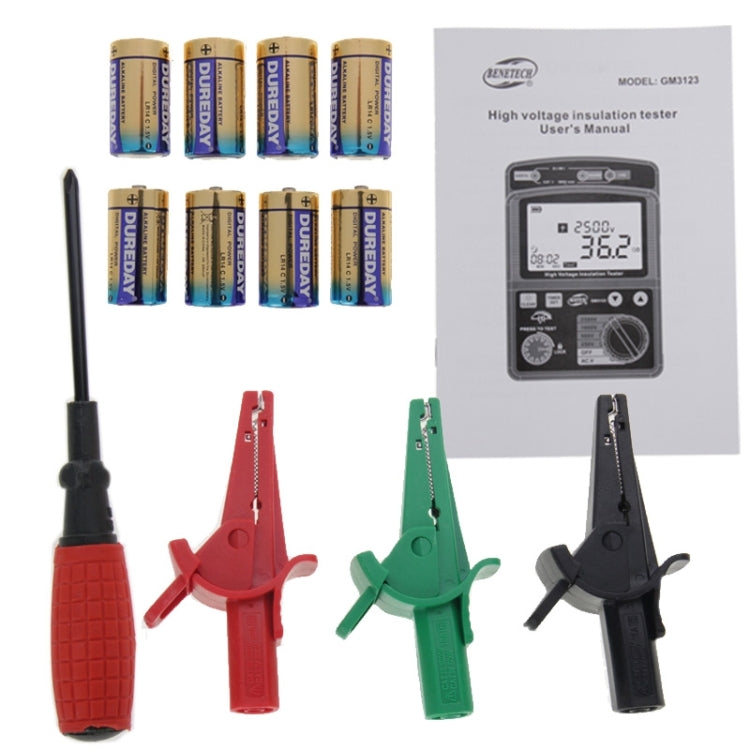

11. Power Supply: DC 12V (8 x 1.5V LR14 batteries) (included)
12. Size: 153mm x 96mm x 220mm
13. Weight: 1032g (without batteries and test wires)
