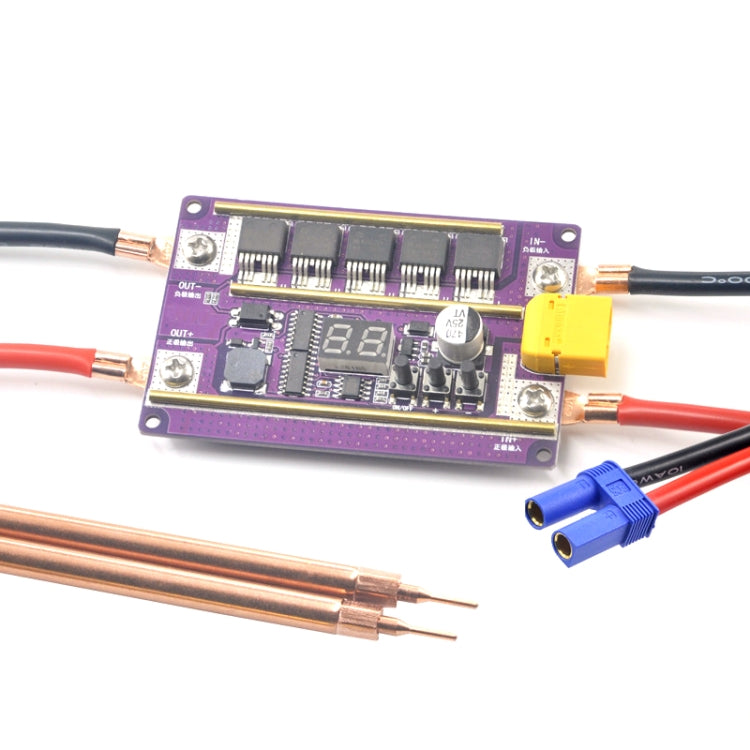

Compatible Version 12V Digital Display DIY Battery Spot Welding Machine Pen Control, Style:6 Square Pen

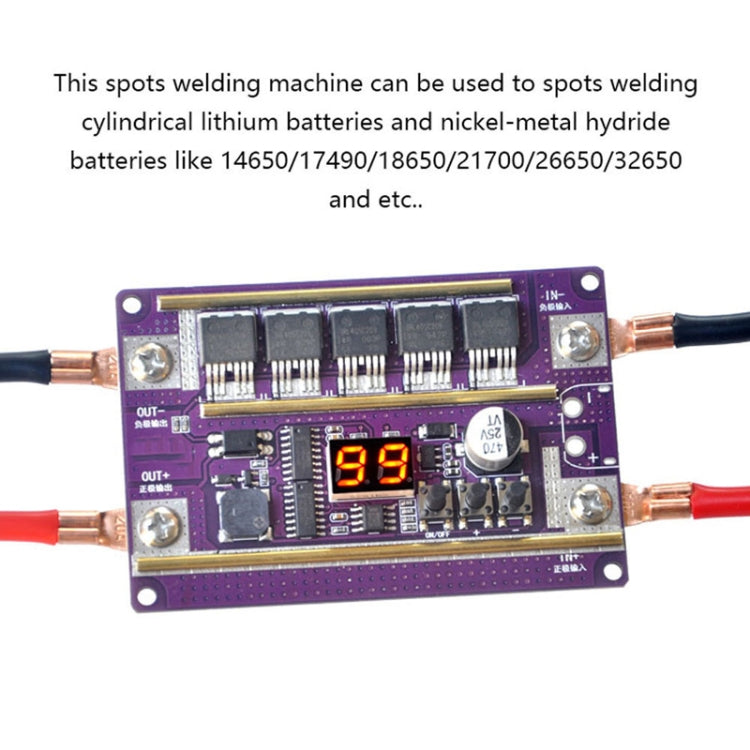

The 12V Digital Display DIY Battery Spot Welding Machine Pen Control is designed for spot welding nickel plating sheets and various battery types. It is suitable for applications such as assembling lithium cylindrical batteries and nickel-metal hydride batteries.

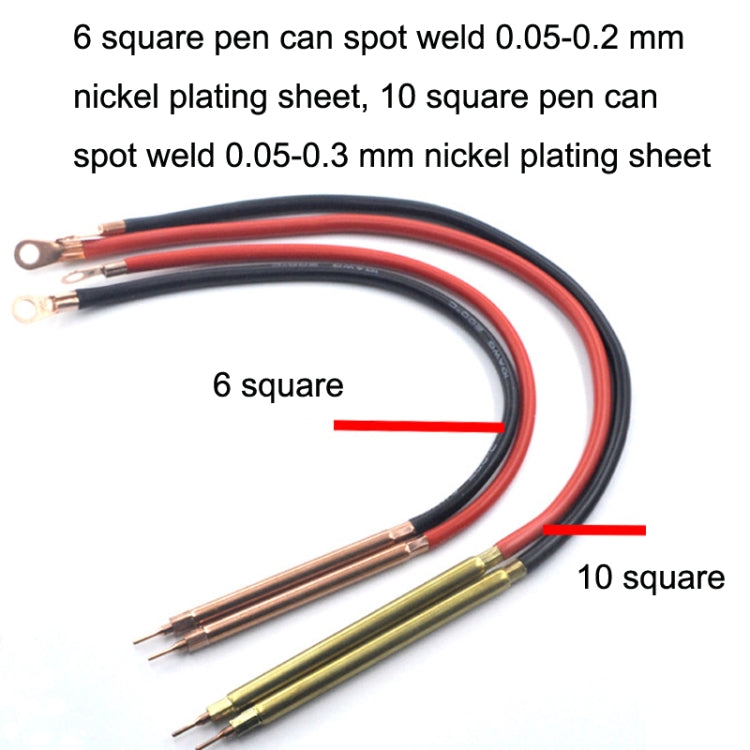

• Welding capability: 6 square pen for 0.05-0.2 mm nickel plating sheet, 10 square pen for 0.05-0.3 mm nickel plating sheet

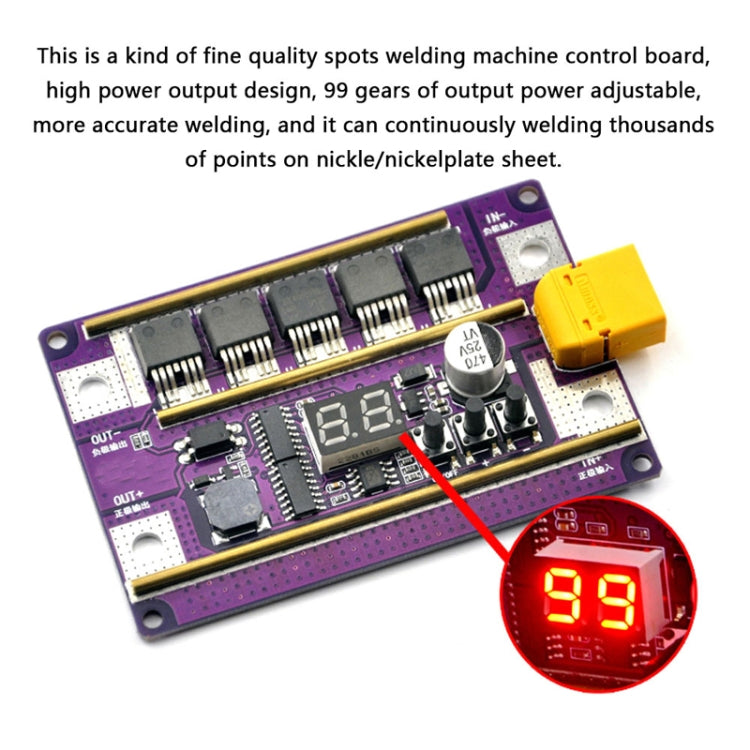

• Output power: 99 adjustable settings for precise welding
• Current output: 2390A maximum from 5 MOS transistors
• Welding method: High current and high temperature melting of nickel foil

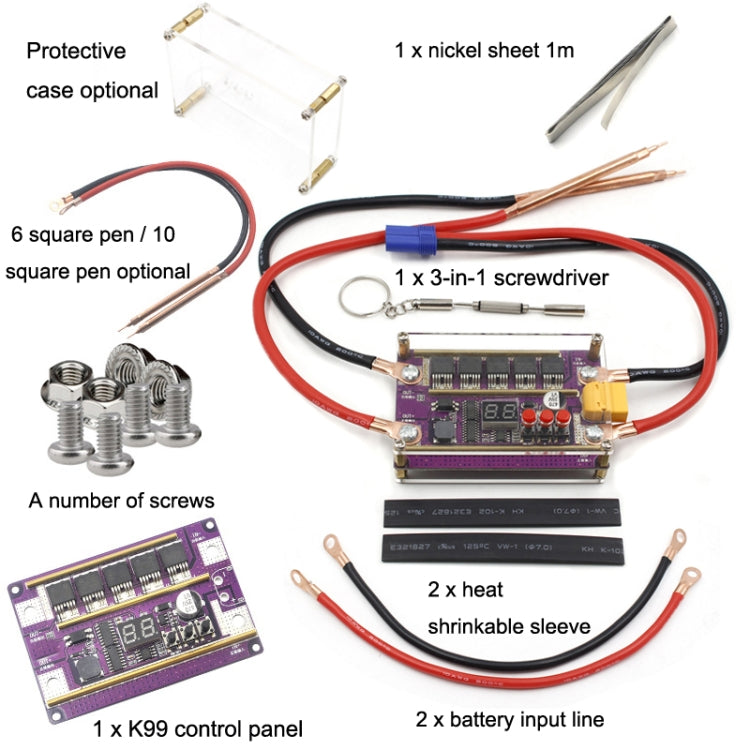

• Included components: control panel, battery input lines, EC5 bus input lines, output lines with spot welding pen, heat shrinkable sleeves, screws, nickel sheet (1 meter), acrylic case with protection shell, three-in-one screwdriver

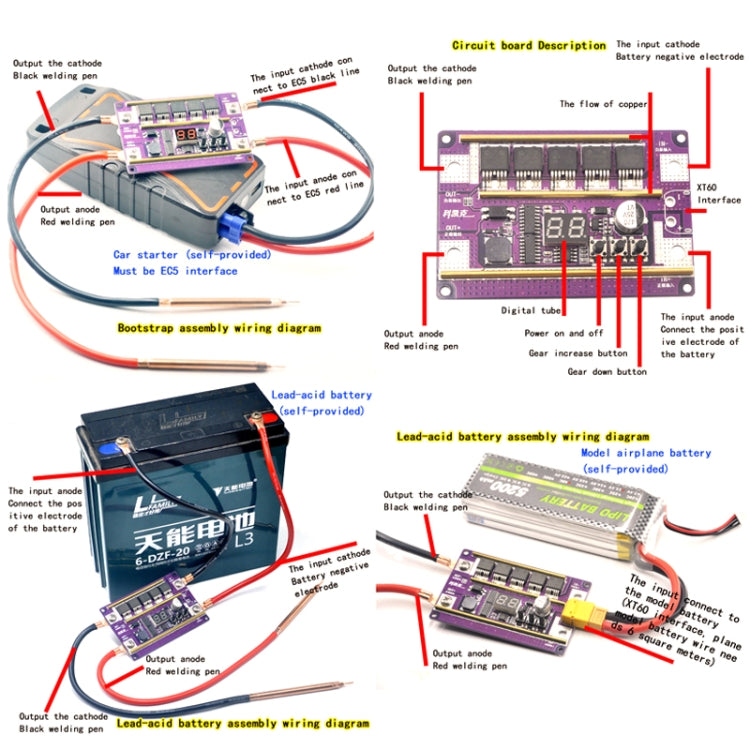

• Power supply compatibility: Compatible with lead-acid battery, model aircraft battery, and start treasure version
• Control board operating voltage: 9-16V
• Control board operating current: 90-180A
• Display type: Digital tube display
• Prohibited power supplies: Do not use switching power supply, transformer, charger, water battery, or power supply spot welding machine
