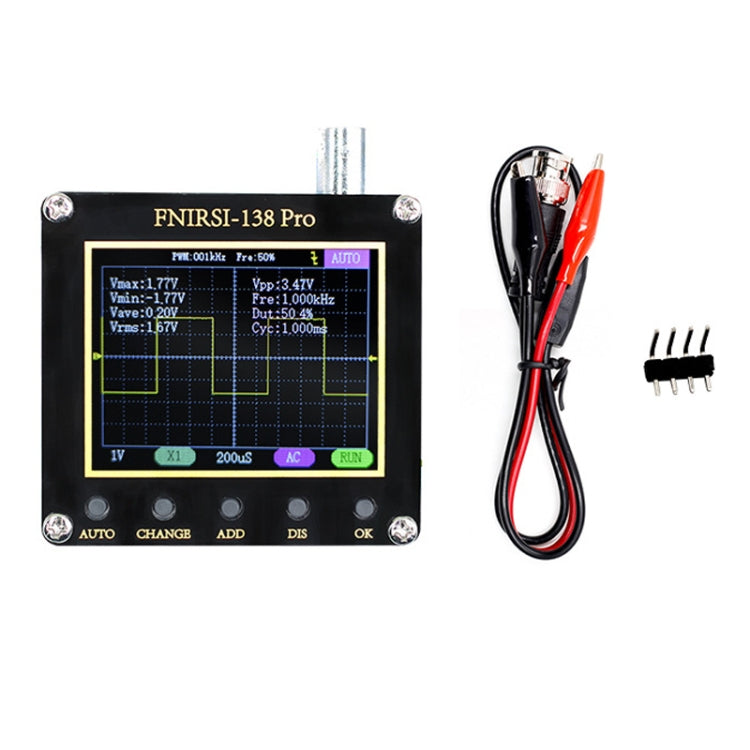

FNIRSI Handheld Small Teaching Maintenance Digital Oscilloscope, Specification: Standard Without Battery

The FNIRSI Handheld Small Teaching Maintenance Digital Oscilloscope is a portable testing tool designed for electronic diagnostics. It is suitable for everyday use in educational settings and maintenance tasks, providing essential waveform analysis capabilities.

• Product Type: Handheld Digital Oscilloscope
• Material: Durable
• Color/Variant: Standard Without Battery
• Power Supply: USB direct power supply
• Power Supply Voltage: 5-6V
• Sampling Rate: 2.5MS/s
• Bandwidth: 200KHz
• Voltage Range: X1 40V (Vpp: 80V); X10 400V (Vpp: 800V)
• Coupling Method: AC/DC
• PWM Output: 3.3V frequency 0-80kHz
• Display: 2.4 inches, 320x240 resolution
• Automatic Trigger: Test cycle simulation signal
• Single Trigger: Test sudden non-periodic signals
• Normal Triggering: Testing digital logic signals
• Size: 65x60x18mm
• Weight: 53g (excluding battery)
• Button Design: Small buttons, comfortable to press, ergonomically designed
• Interface: Universal BNC interface, Type-C supports data transmission and charging
• Note: High configuration includes an extra 10x P6100 probe
