Description
High Flow 3.0L Automatic Small Intelligent Single Head Liquid Induction Multifunctional Quantitative Filling Machine is designed for precise liquid filling applications. It is suitable for liquids with good fluidity and no particles, making it ideal for beverages, soy milk, and other non-viscous liquids.
- Input Voltage: AC 110-220V, 50/60Hz
- Output Voltage: DC 12V
- Ambient Temperature: 10 - 40 degrees Celsius
- Medium Temperature: 3.0L model: 5 - 50 degrees Celsius; 1.5L model: 5 - 100 degrees Celsius
- Minimum Flow Rate: 3.0L model: 10ml; 1.5L model: 5ml
- Maximum Flow Rate: 3.0L model: 3000ml/min; 1.5L model: 1500ml/min
- 1s Flow Rate: 3.0L model: 50ml; 1.5L model: 25ml
- Water Pump Flow Rate: Adjustable
- Speed Range: 01-99 PWM digital display speed regulation
- Filling Capacity Setting Range: 1-9999ml
- Counter: Supported, counting range 1-9999
- Pump Head Material: 3.0L: PBT plastic; 1.5L: PC plastic
- Corrosion Resistance: 3.0L: supports weak corrosion; 1.5L: not corrosion resistant

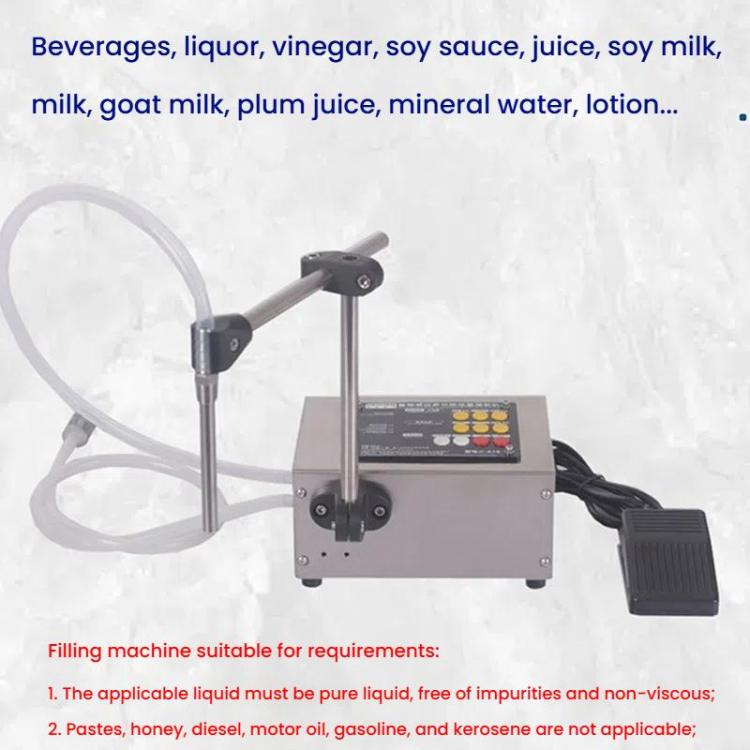

- Scope of Application: Liquids with good fluidity, no particles
- Power-off Memory: Supported
- Adjustable Range of Filling Bracket: 0-200mm
- Check Valve: Yes
- Suitable for Bottle Mouth Inner Diameter: Greater than 12mm
- Filling Capacity Range: 3.0L: 10-3000ml; 1.5L: 5-1500ml (specific filling capacity depends on bottle shape and specifications)

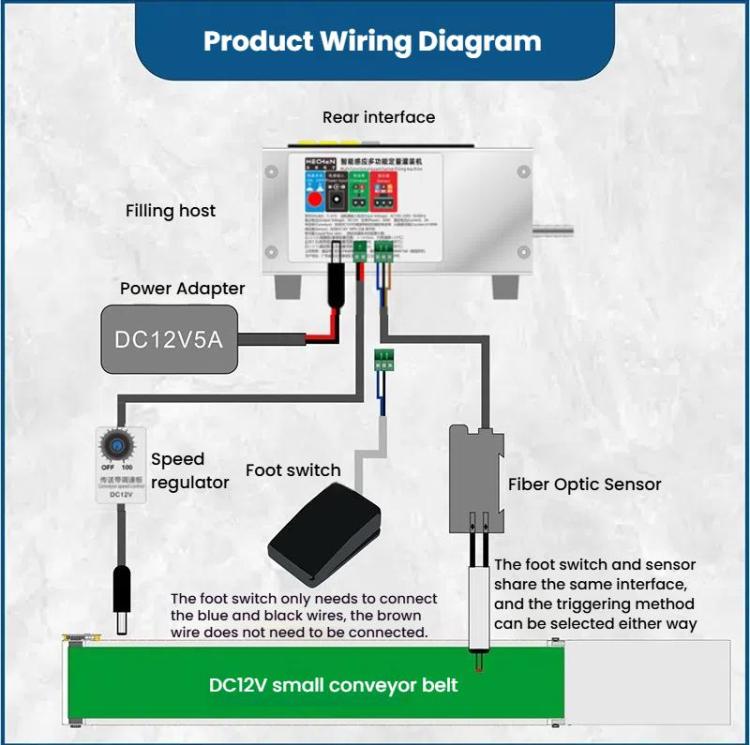

- Conveyor Belt Interface: Supports 12V conveyor belt expansion
- Sensor Interface: Foot switch, supports DC12V NPN three-wire sensor

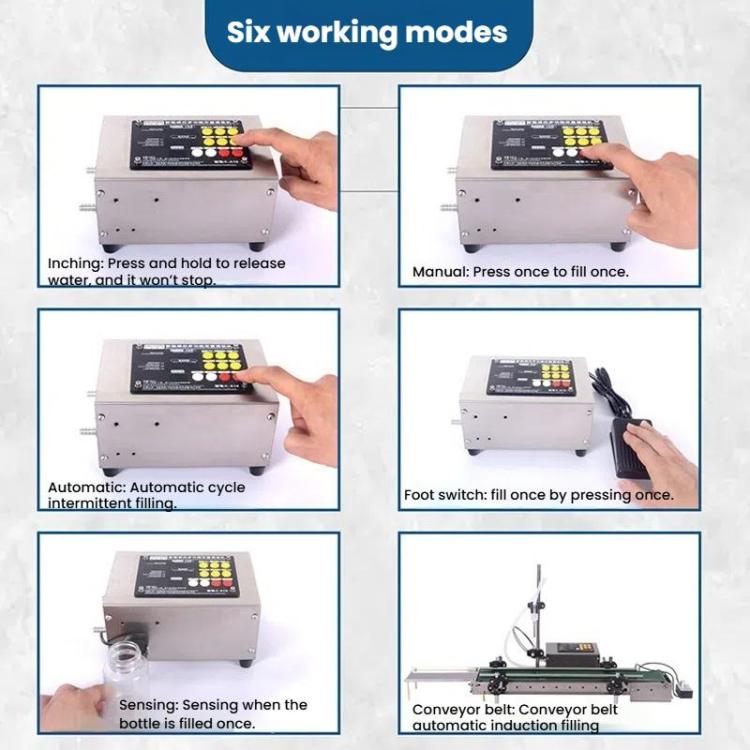

- Working Modes: Inching, Manual, Automatic, Foot Switch, Induction, Conveyor Belt

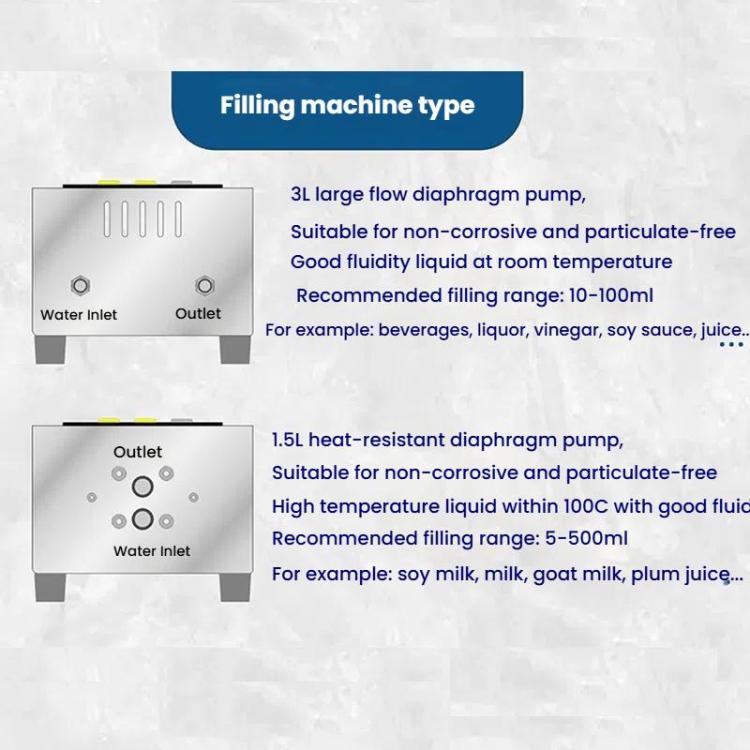

- 3L Large Flow Diaphragm Pump: Suitable for non-corrosive, non-particle-free liquids at room temperature
- 1.5L Heat-Resistant Diaphragm Pump: Suitable for non-corrosive, non-particle-free liquids up to 100 degrees Celsius

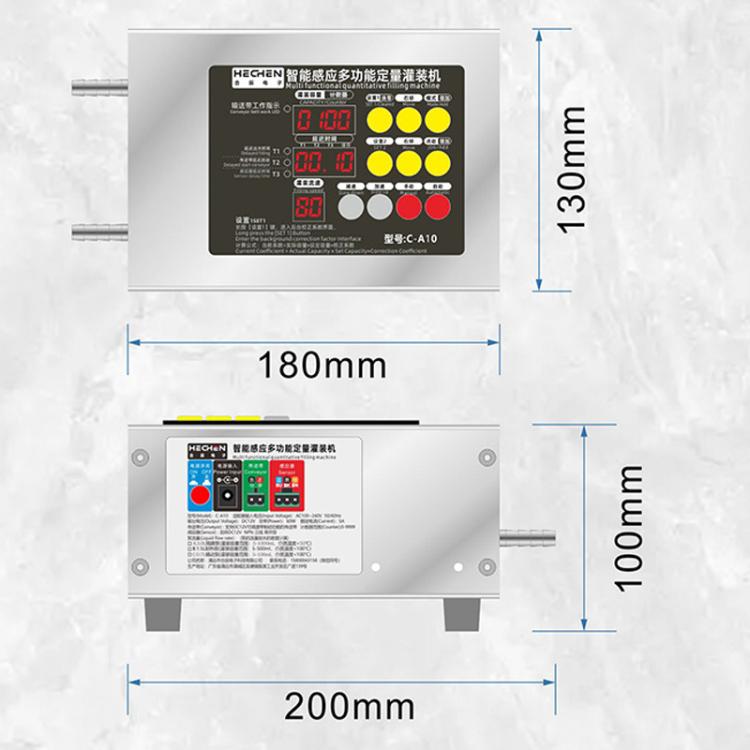

- Dimensions: Approximately 18 x 13 x 10 cm

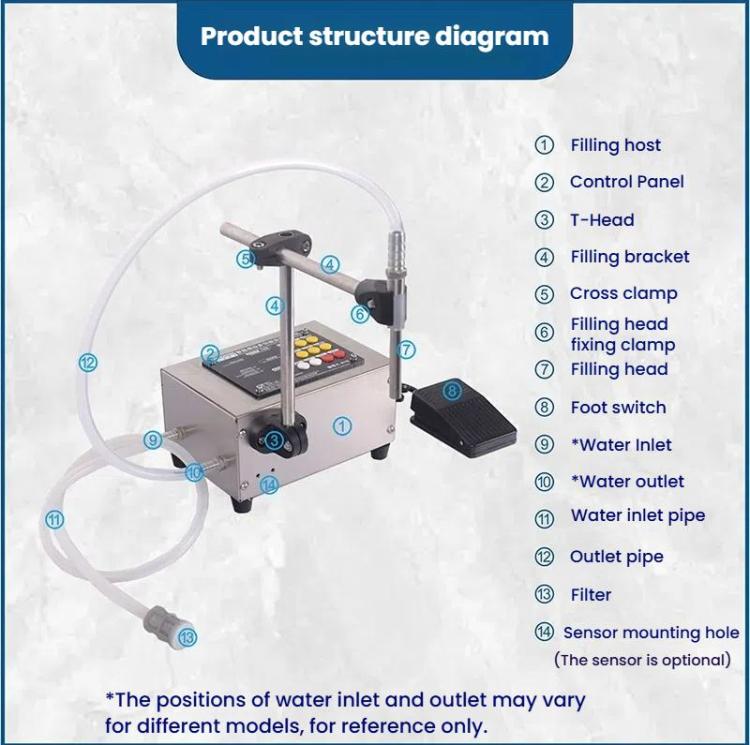

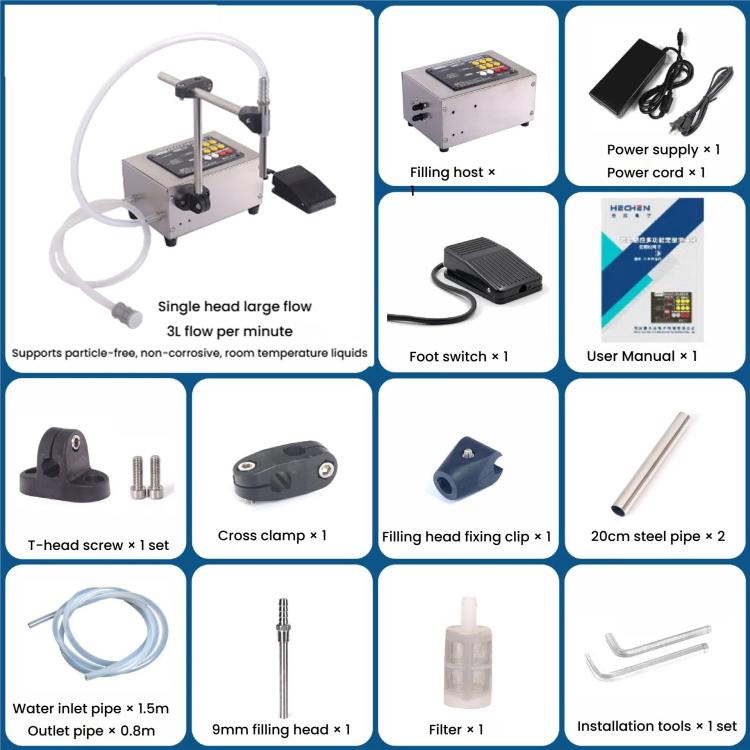

- Packing List: Filling host, power supply, power cord, foot switch, instruction manual, T-head, screws, cross clamp, filling head fixing clamp, 20cm steel pipe (x2), 1.5m water inlet pipe, 0.8m water outlet pipe, 9mm filling head, filter, installation tool (x2)
