Description

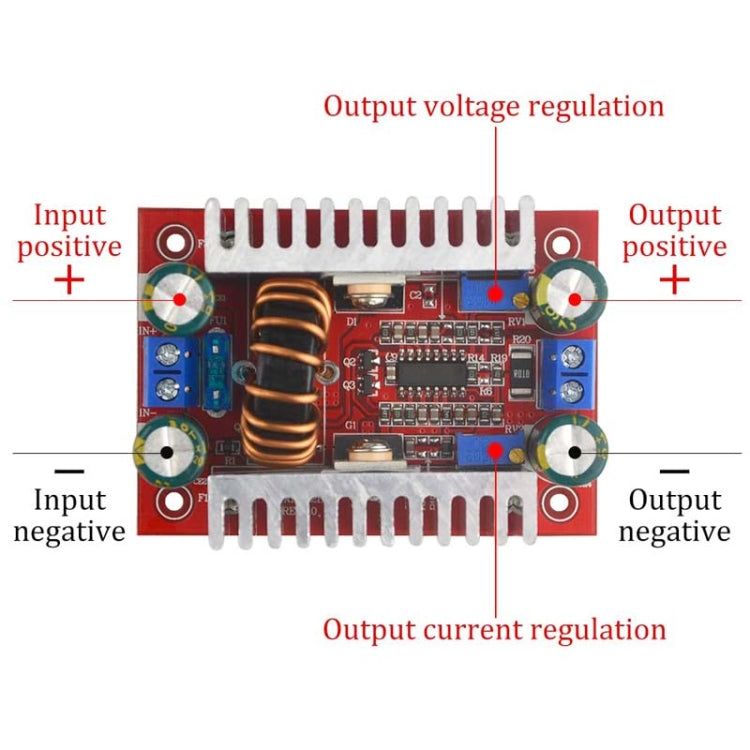

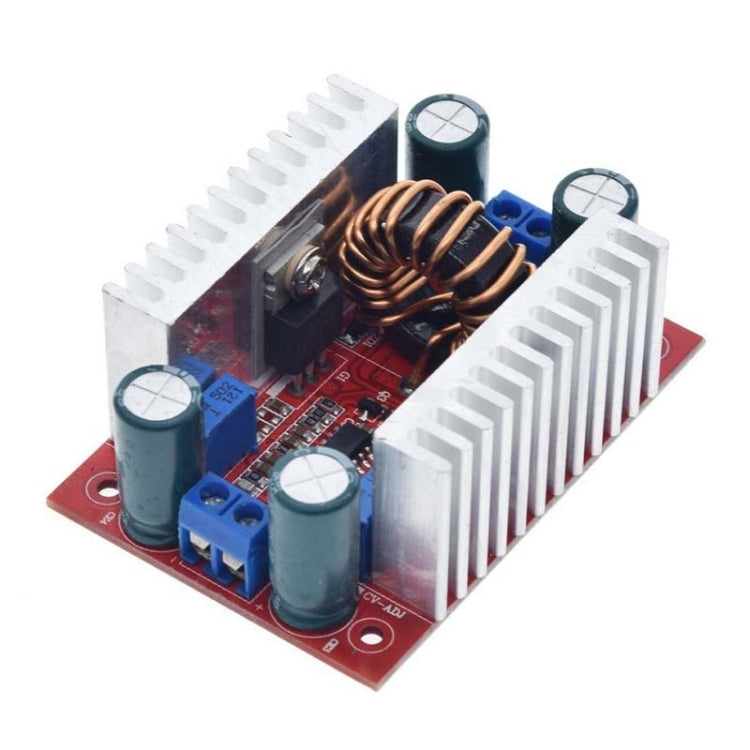

The MK00132 DC-DC 400W 15A Boost Converter is a non-isolated boost module designed for electrical applications. It is suitable for use in scenarios requiring voltage conversion, such as powering LED drivers.
- Module type: Non-isolated boost module
- Input voltage: DC 8.5-50V
- Input current: 15A (maximum); over 8A requires enhanced heat dissipation
- Static operating current: 10mA (in the range of 12V to 20V, increases with higher output voltage)
- Output voltage: 19V
- Output current: 12A (maximum); over 7A requires enhanced heat dissipation
- Operating temperature: -40 to 85 degrees Celsius
- Operating frequency: 150KHz
- Conversion efficiency: 96% maximum
- Overcurrent protection: Yes (input over 15A causes automatic reduction of output voltage, with a certain error range)
- Input reverse connection protection: No
- Constant current range: 0.2-12A
- Installation mode: Four 2.5mm screws
- Output mode: Wired output

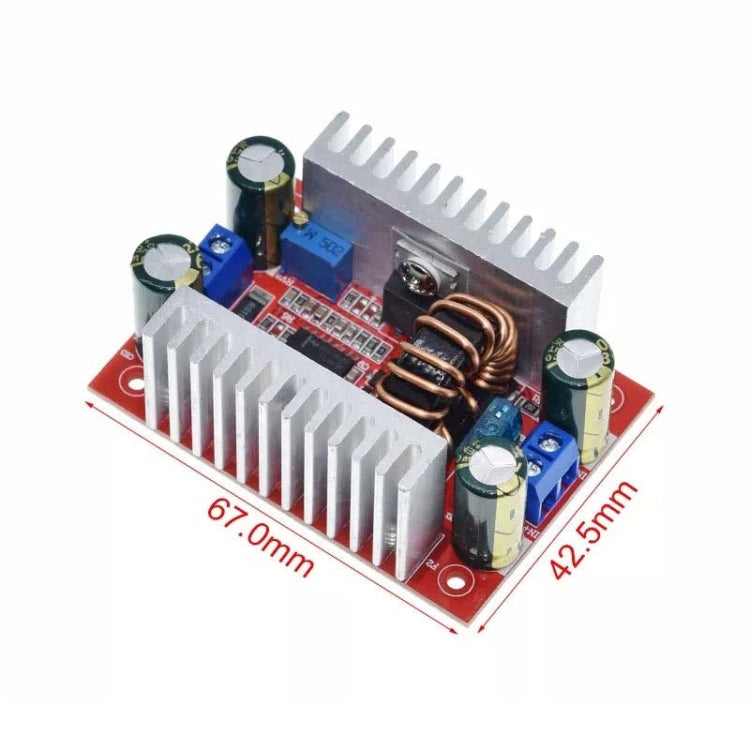

- Dimensions: 67 x 48 x 28 mm
- Weight: 60g
