Description

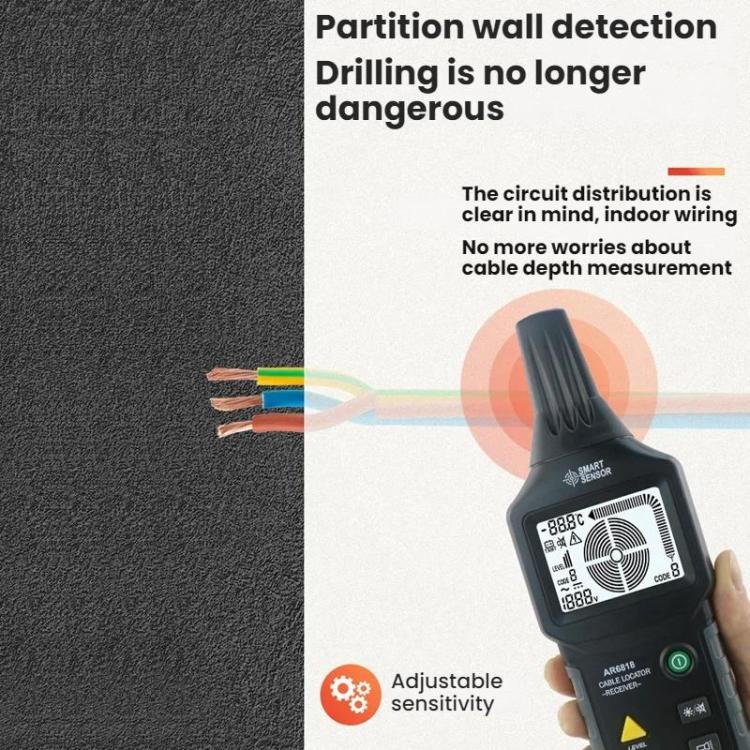

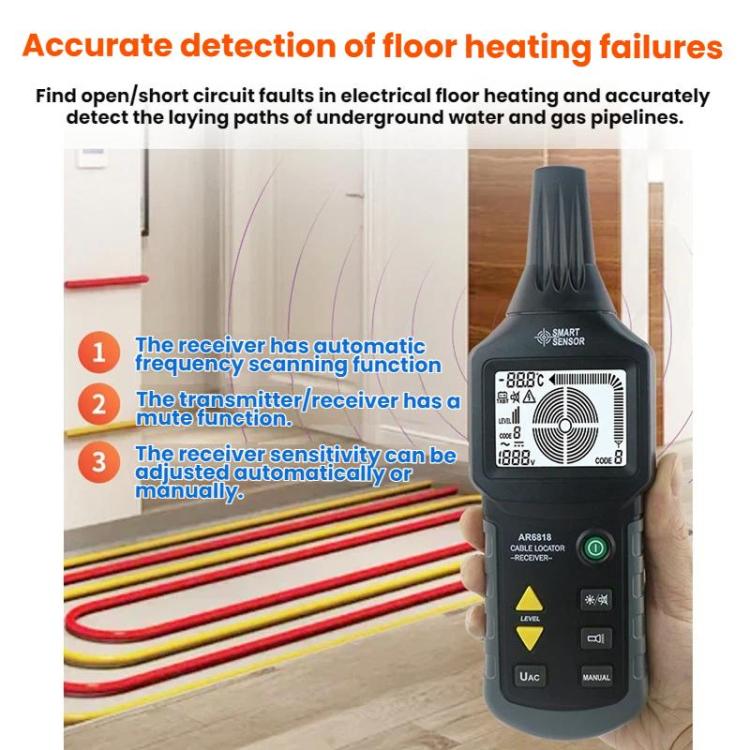

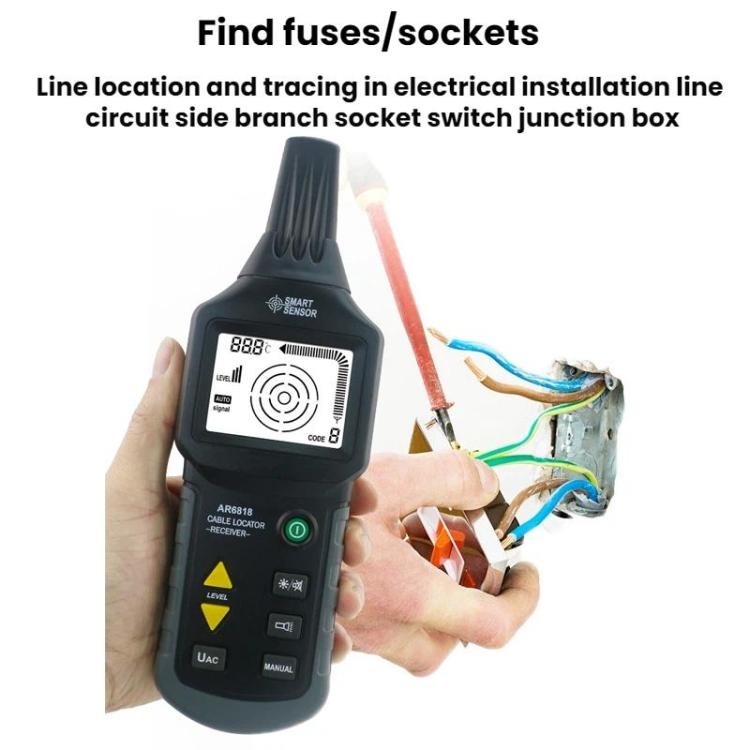

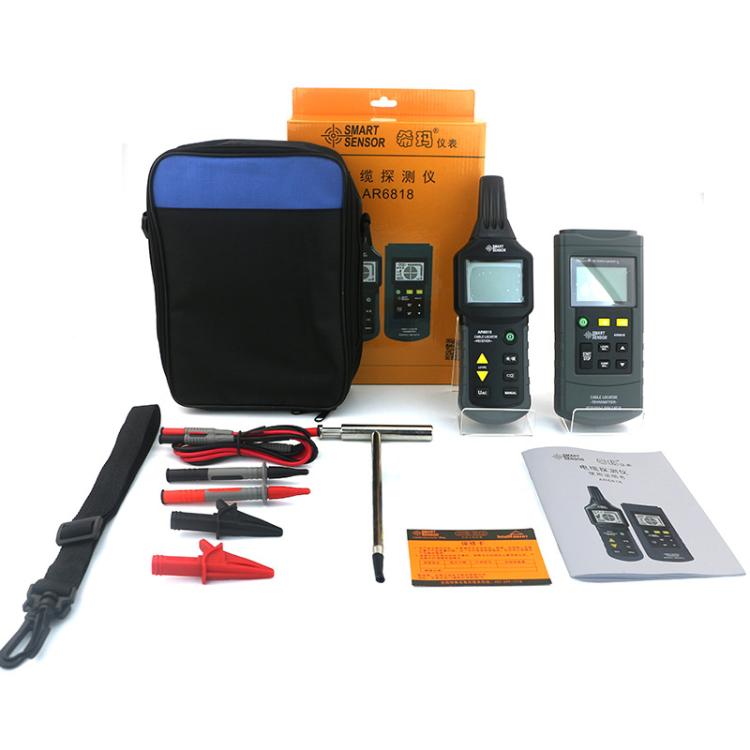

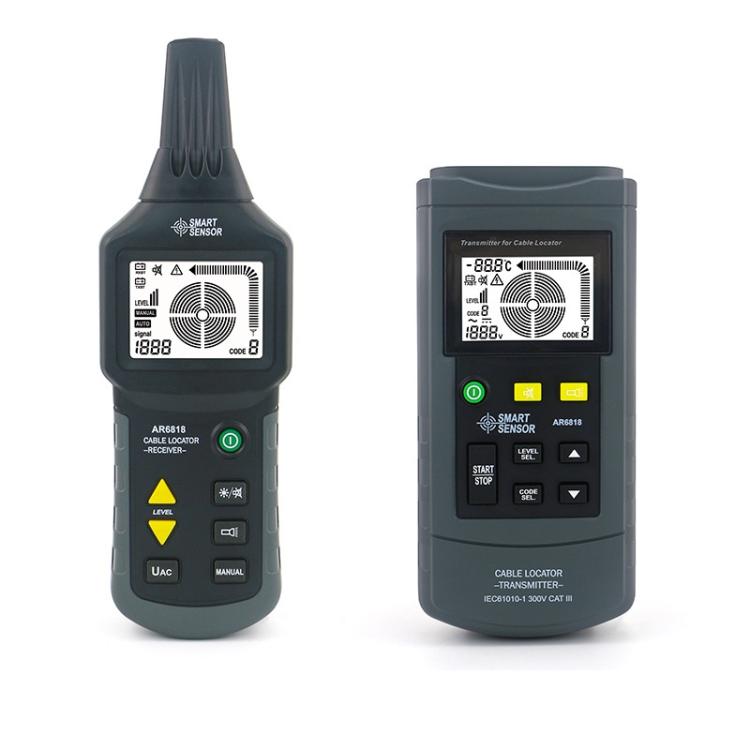

The SMART SENSOR Pipeline Hidden Wire Fault Detection Underground Cable Detector is designed for locating and tracing underground cables and wires. It is suitable for everyday use in electrical installations, helping to identify fuses, sockets, and circuits.
- Product Type: LAN Cable and Tools
- Compatibility: Underground Cable Detection
- Material: Durable
- Key Feature: Easy operation
- Color/Variant: Not specified
- Category: Computer & Networking

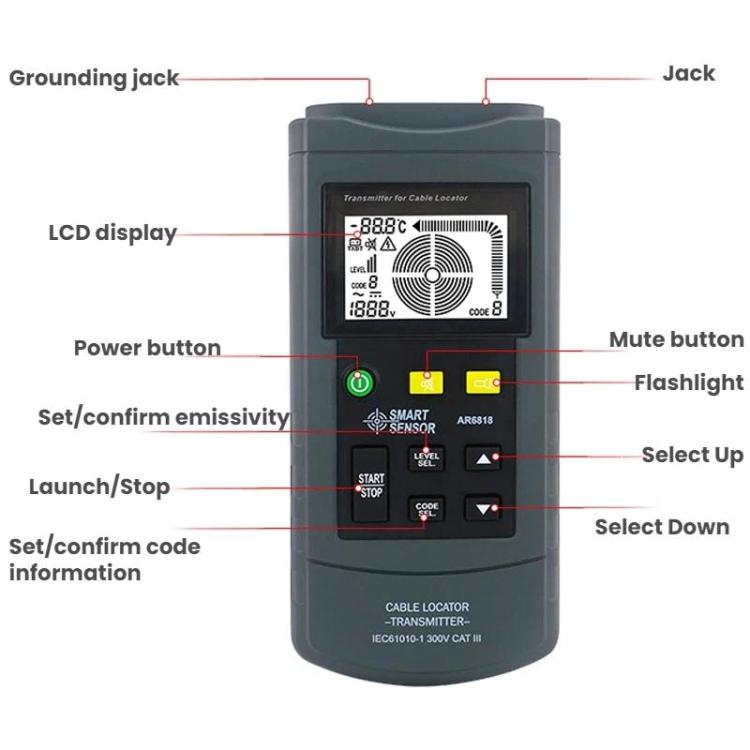

- Transmitter Specifications:
- Output Signal: 125 kHz
- External Voltage Detection Range: DC 12-400 V; AC 12-400 V (50-60 Hz)
- Temperature Measurement Specifications: 2.5°C
- Display: LCD with function display and bar graph
- External Voltage Dielectric Strength: 400 V AC/DC
- Overvoltage Category: CAT III 300 V
- Pollution Degree: 2
- Power Supply: 1 x 9V, IEC 6LR619
- Current (MIN): approximately 31 mA
- Current (MAX): approximately 115 mA
- Fuse: F0.5 A 1000 V, 6.3 x 32 mm
- Altitude (MAX): 2000 m
- Dimensions: 190 x 89 x 4 mm
- Weight: approximately 360 g

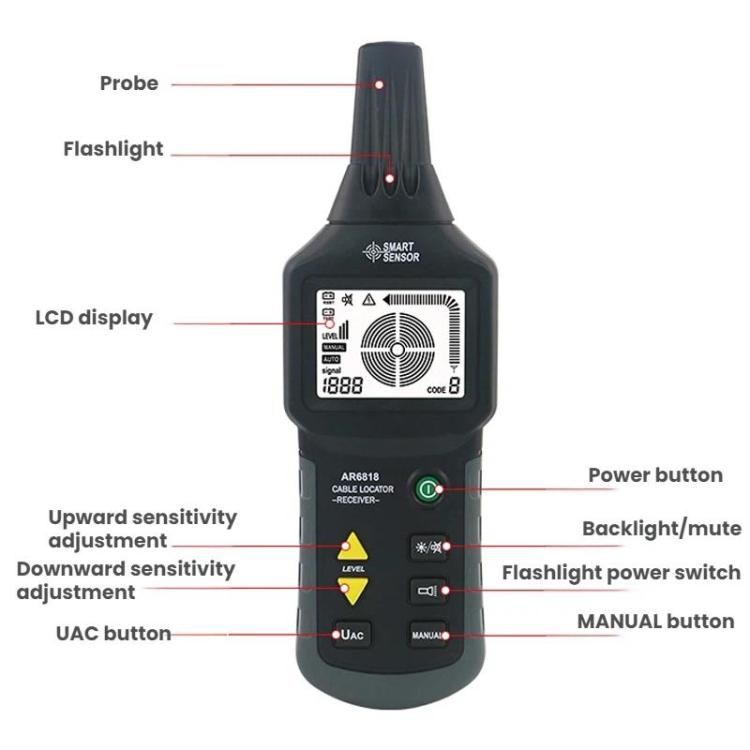

- Receiver Specifications:
- Tracing Depth: Depends on the medium and specific application
- Cable Locating Mode (Monopolar Application): approximately 0 to 2 m
- Cable Locating Mode (Bipolar Application): approximately 0 to 0.5 m
- Cable Locating Mode (Single Loop): Up to 2.5 m
- Grid Voltage Identification: approximately 0 to 0.4 m

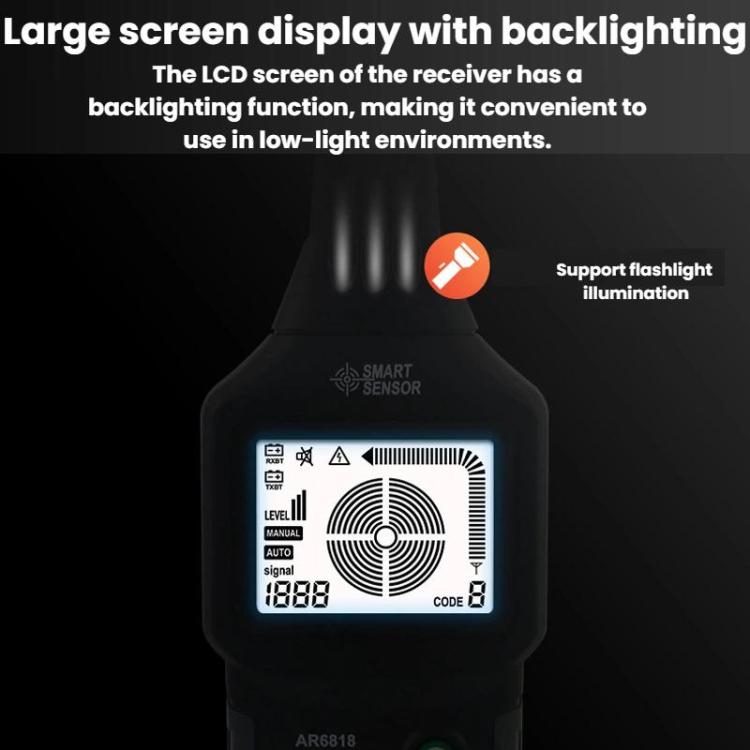

- Display: LCD with function display and bar graph

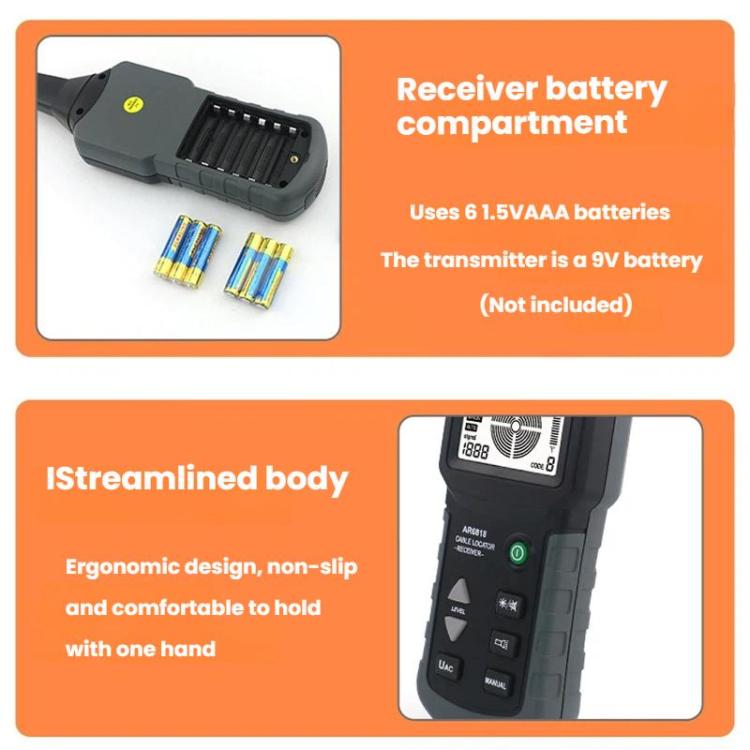

- Power Supply: 6 x 1.5 V AAA, IEC LR03
- Current Consumption (Minimum): approximately 32 mA
- Current Consumption (Maximum): approximately 89 mA
- Altitude (Maximum): 2000 m
- Dimensions: 24.5 x 78 x 38.5 mm
- Weight: approximately 280 g
