Description

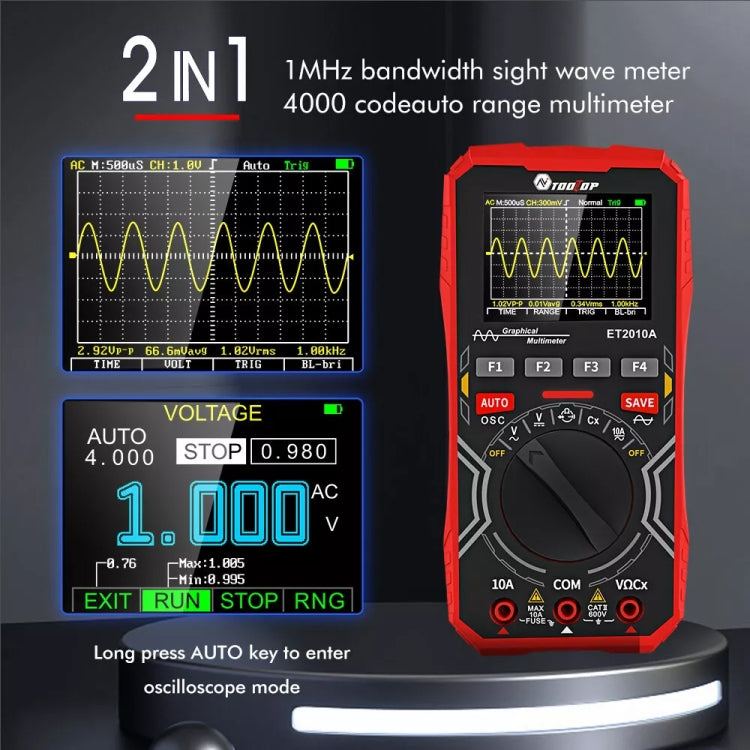

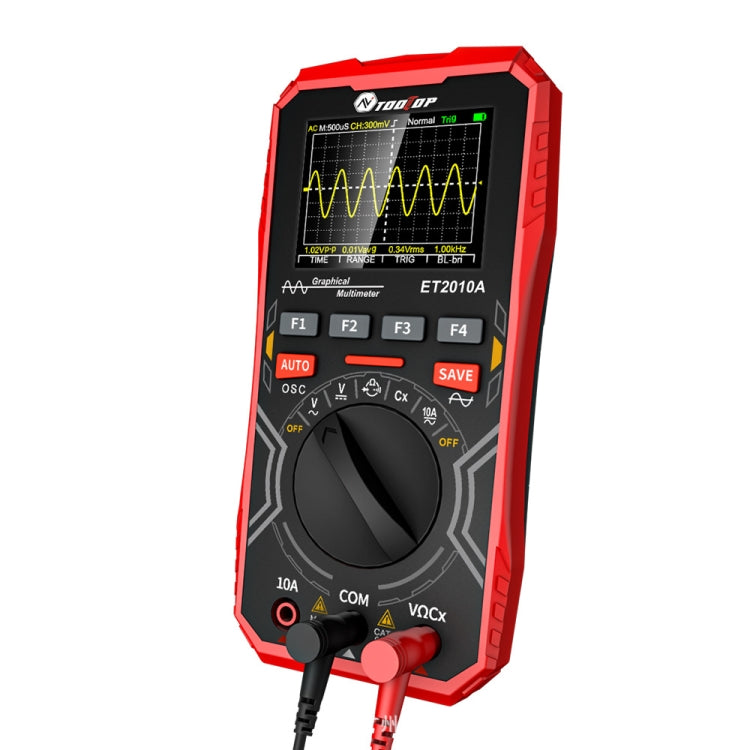

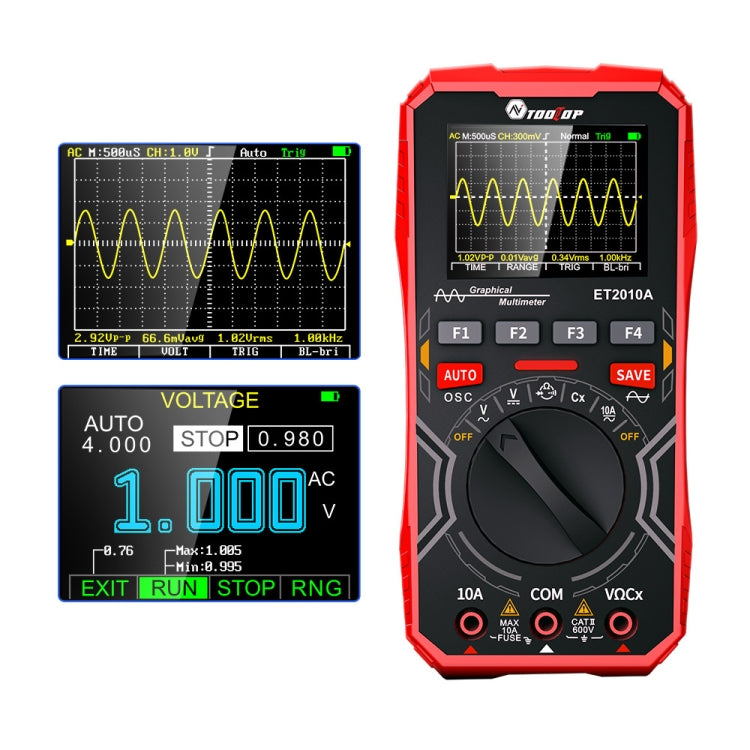

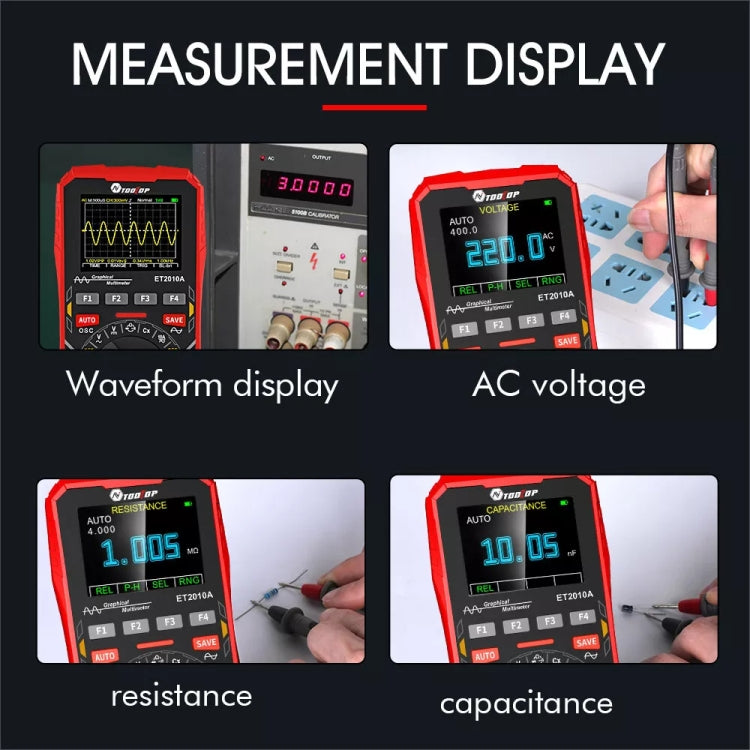

TOOLTOP 2 In 1 DIY Oscilloscope Mini Multimeter is a dual-function measuring device that combines an oscilloscope and multimeter. It is suitable for electronics troubleshooting, allowing users to measure voltage, current, resistance, and frequency in various applications.
- Bandwidth: 1 MHz
- Real-time sampling rate: 2.5 Msps
- Display resolution: 320 x 240 with white backlight
- Power supply: 3 x AA batteries (not included)
- Data storage capacity: 100 data points and 10 waveforms
- Fuse rating: 10 A / 250 V
- Number of channels: 1
- Vertical sensitivity range: 300 mV - 1000 V/div
- Time base range: 2.5 µs - 10 s/div

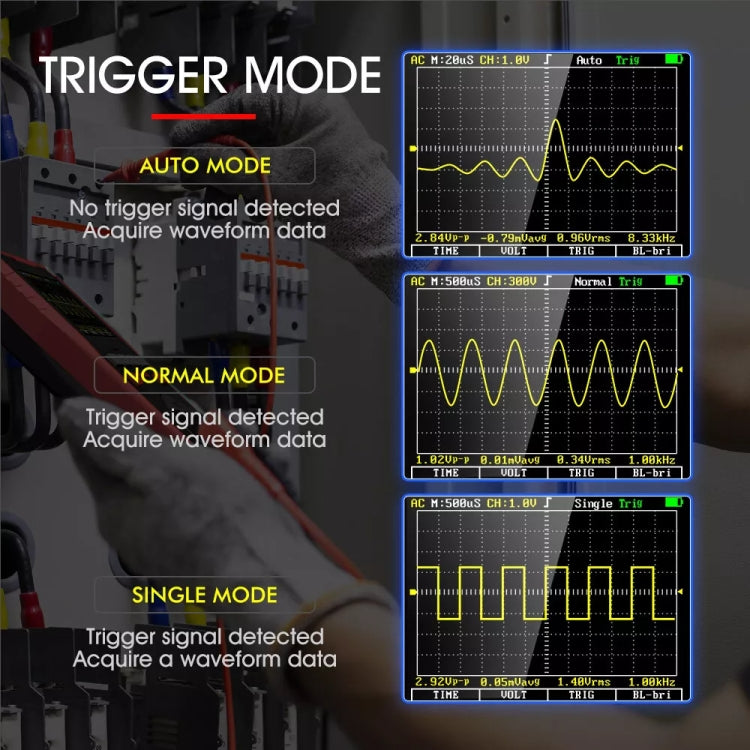

- Trigger modes: Auto, Single, Normal
- Trigger edge selection: Rising edge, Falling edge
- Auto sleep function: No operation within 15 minutes
- Measurement functions: Vp-p, Vavg, Vrms, Hz
- Input resistance: Approximately 10 milliohms
- DC voltage measurement range: 400 mV - 600 V
- AC voltage measurement range: 400 mV - 600 V
- DC current measurement range: 4 A - 10 A
- AC current measurement range: 4 A - 10 A
- Resistance measurement range: 400.0 ohms - 40.00 milliohms
- Capacitance measurement range: 51.2 nF - 100 µF
- Frequency measurement range: 5 Hz - 5 MHz
- Diode test voltage: 1.5 V

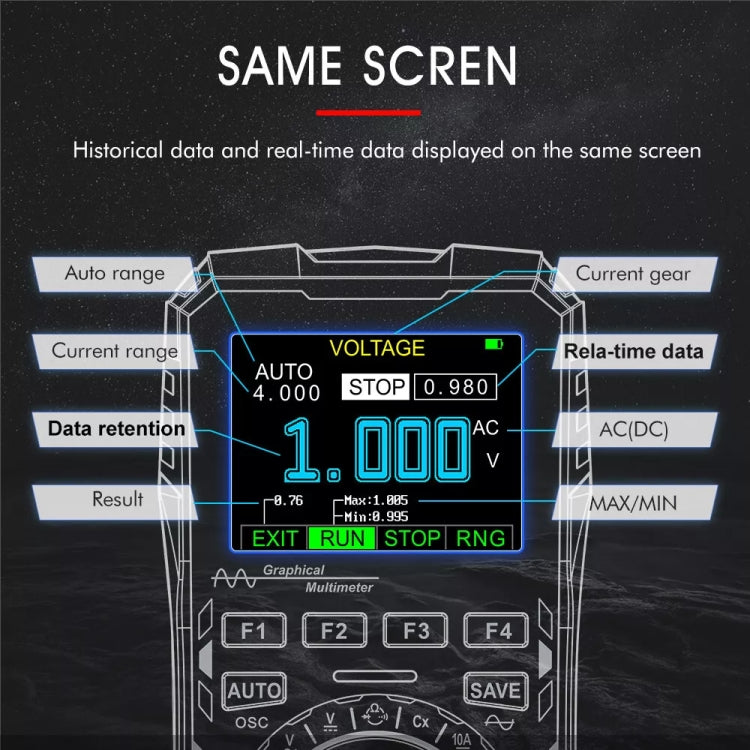

- Same screen display: Historical data and real-time data
- Continuity test: Resistance less than 50 ohms, beep indication

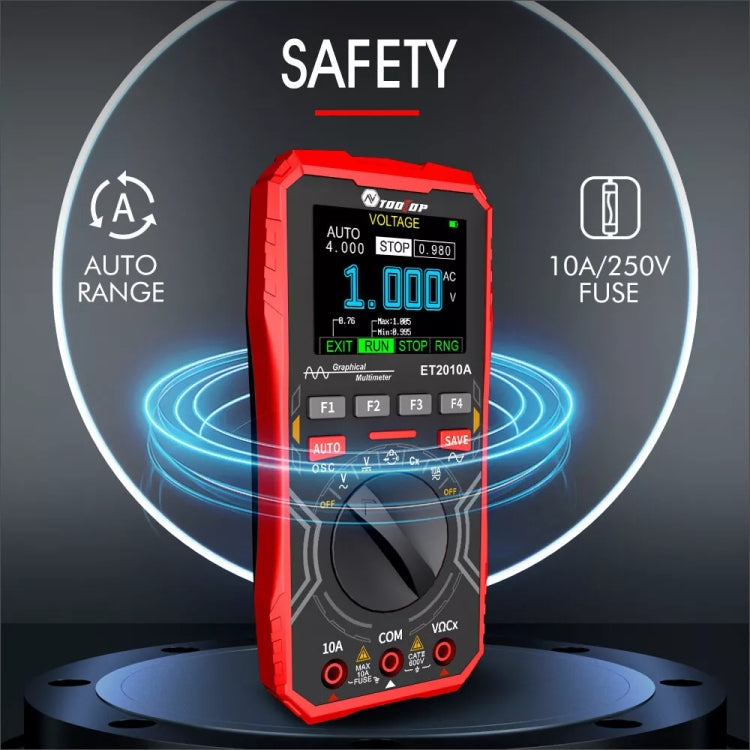

- Intelligent protection: Automatic range plus 10 A fuse double protection

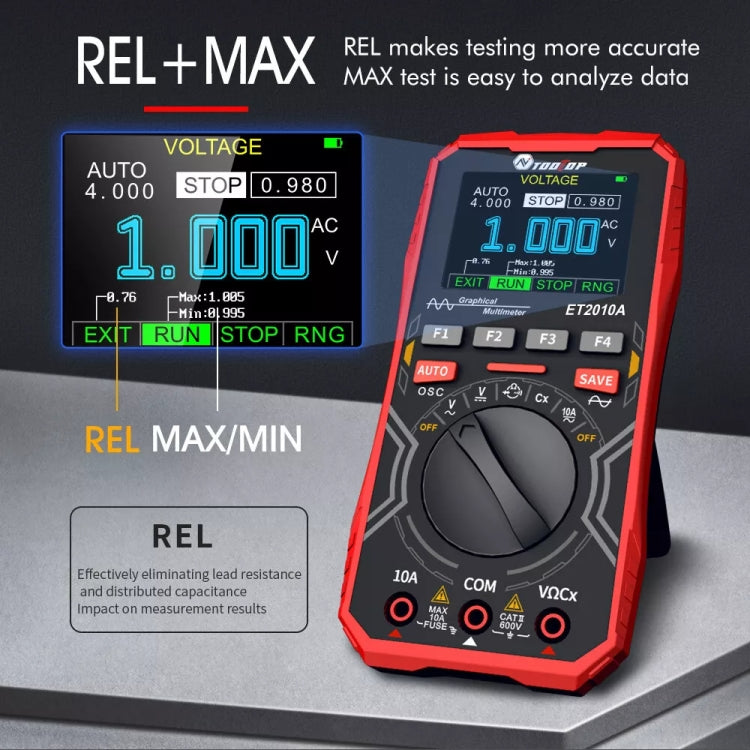

- REL function: Eliminates lead resistance and distributed capacitance effects
- Dimensions: 77 x 157 x 25.5 mm
- Weight: 135 g
