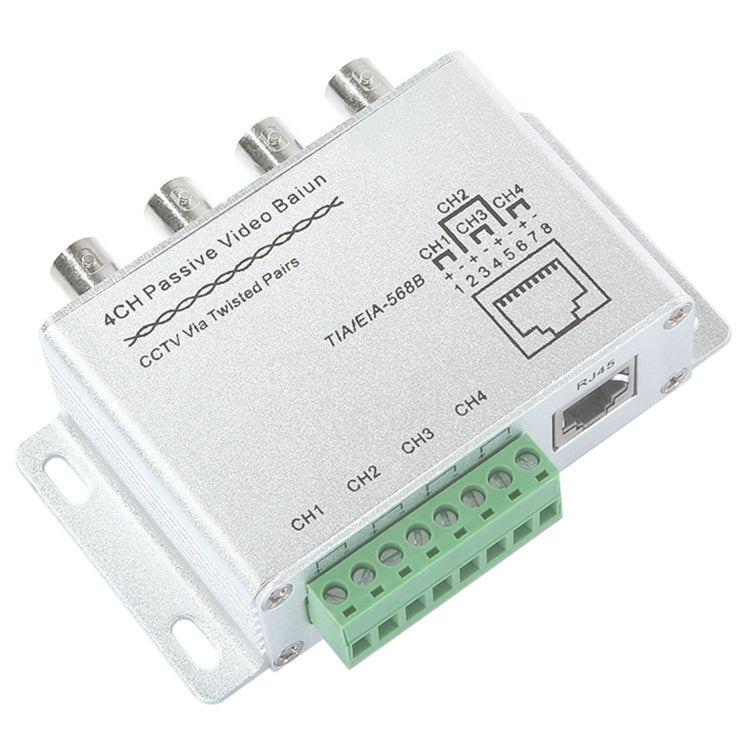

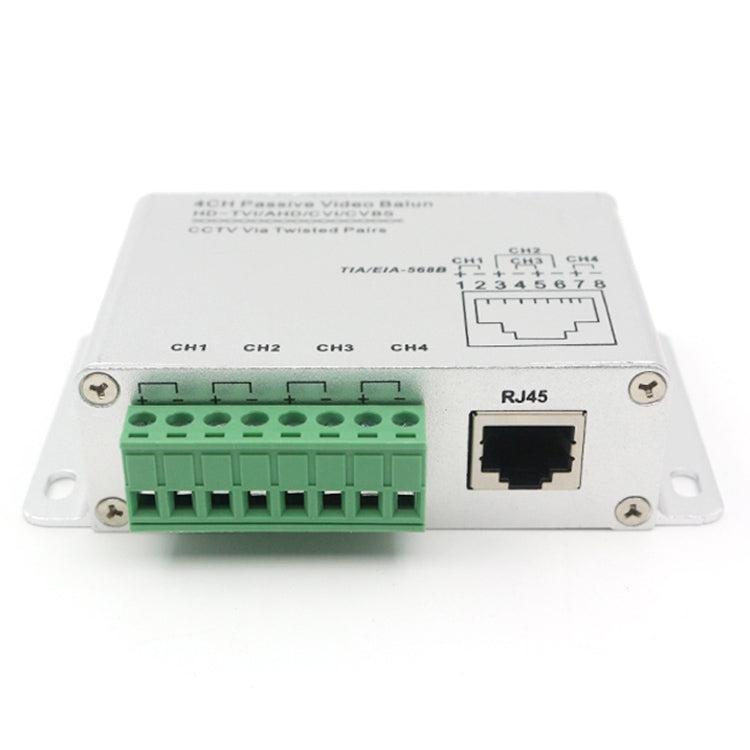

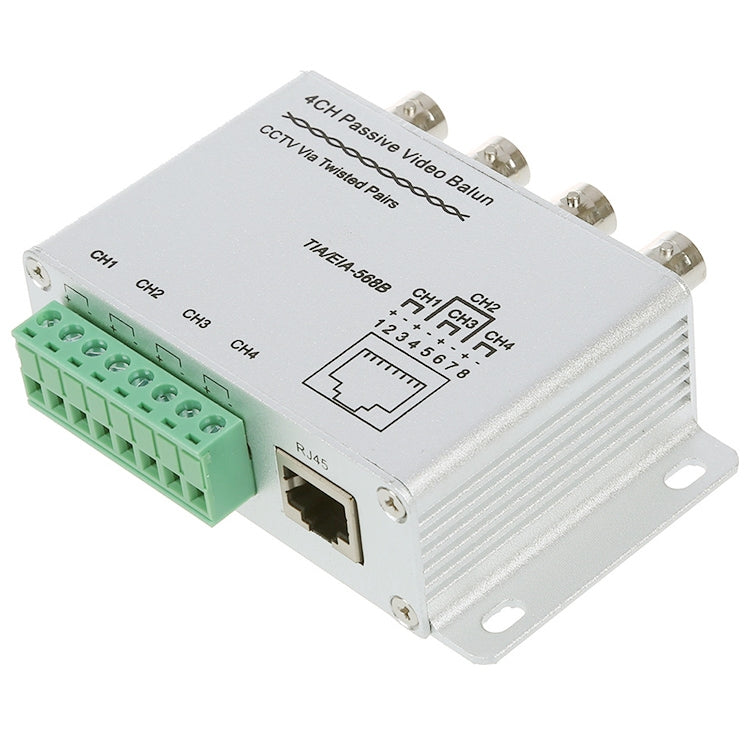

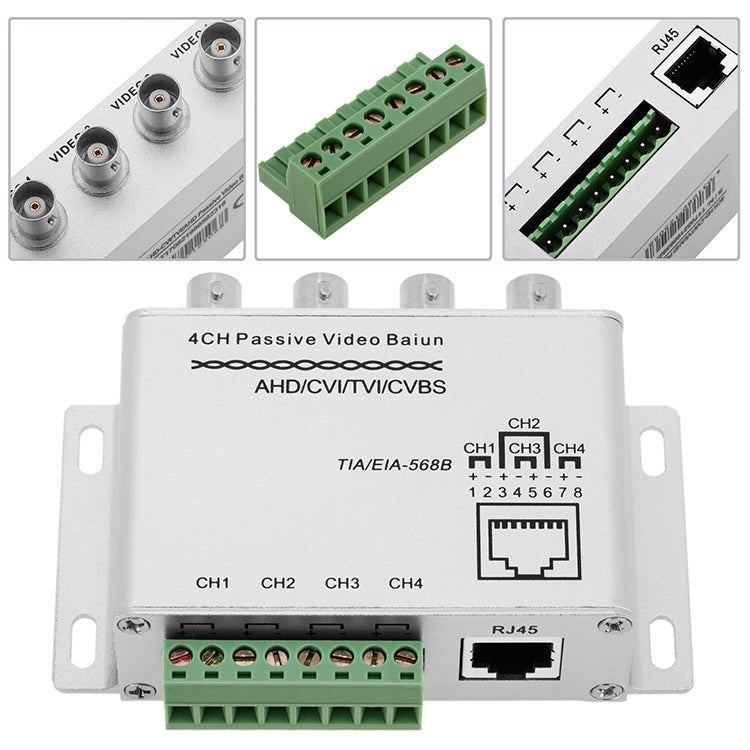

UTP 4 Channel Passive Video Balun Transceiver(Silver)

SKU: S-CVB-0145

Sale Sold out Pre-order

R 469.00

A credit payment option may be available through

Duties & Import Tax Information

5-10 business days

In Stock

Processing time: 1-3 business days

Description

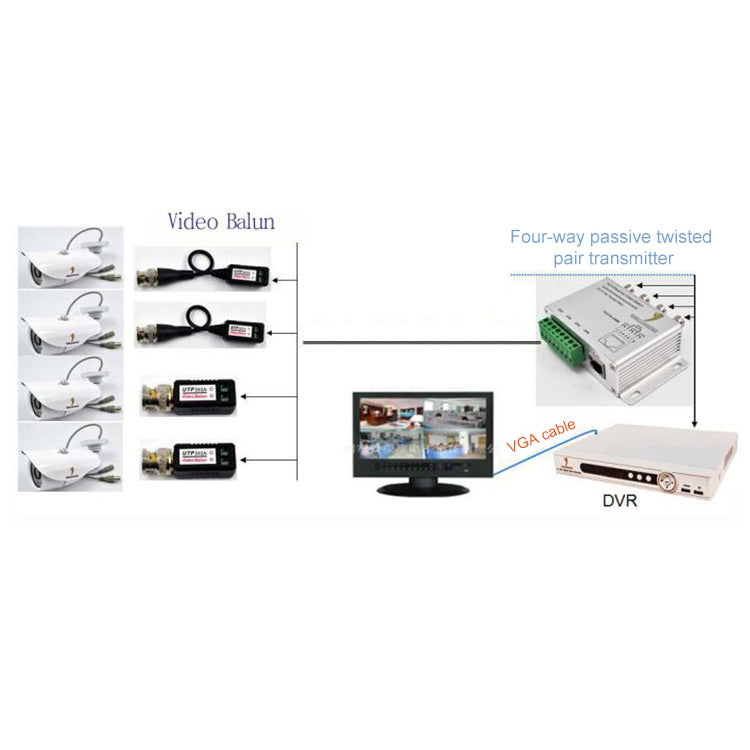

UTP 4 Channel Passive Video Balun Transceiver is designed to transmit multiple video signals over a single cable. It is suitable for applications such as video monitoring and meetings, allowing for the simultaneous transmission of four channels of video images.

Product Type: Video Balun
Compatibility: UTP 4 Channel Passive Video
Color: Silver
Material: Not specified
Key Feature: Transmits multiple video signals
Transmission Distance: Up to 330m with passive transceiver, up to 1500m with active transmitter
Interference Rejection: Excellent, allows coexistence with telephone and data circuits
Signal Conversion: Converts video signal into balanced signal for transmission on Cat-5 unshielded twisted pair wire
Channels: Supports simultaneous transmission of four channels of video
Wiring Efficiency: Simplifies wiring projects and reduces wire usage
Signal Transmission: Differential signal transmission with excellent anti-jamming ability
Power Requirement: No power required
Protection: Built-in transient suppression protection
Frequency Response: DC - 8MHz
CMRR: 60DB
Impedance: BNC terminal: 75ohm, Connection terminal: 100ohm
Operating Temperature: -10°C to 70°C
Storage Temperature: -30°C to 70°C
Compatibility with Video Systems: NTSC, PAL, SECAM, CCIR
Dimensions: 10.3 x 5.7 x 2.8 cm
Weight: 184g
