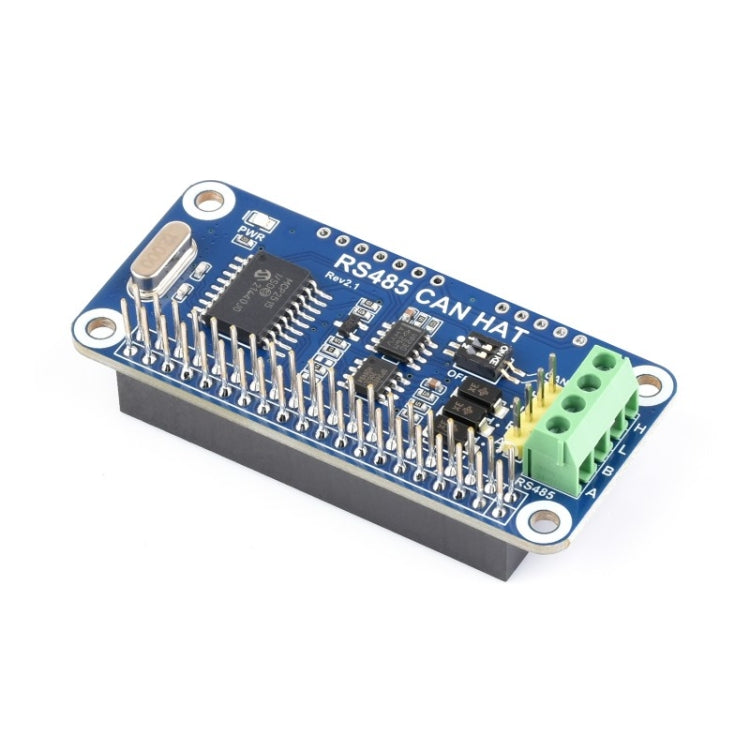

The Waveshare 14882 is a bus module designed for Raspberry Pi that provides RS485 and CAN communication capabilities. It enables users to expand their Raspberry Pi projects with reliable communication interfaces for industrial applications.
- Compatible with Raspberry Pi series motherboards

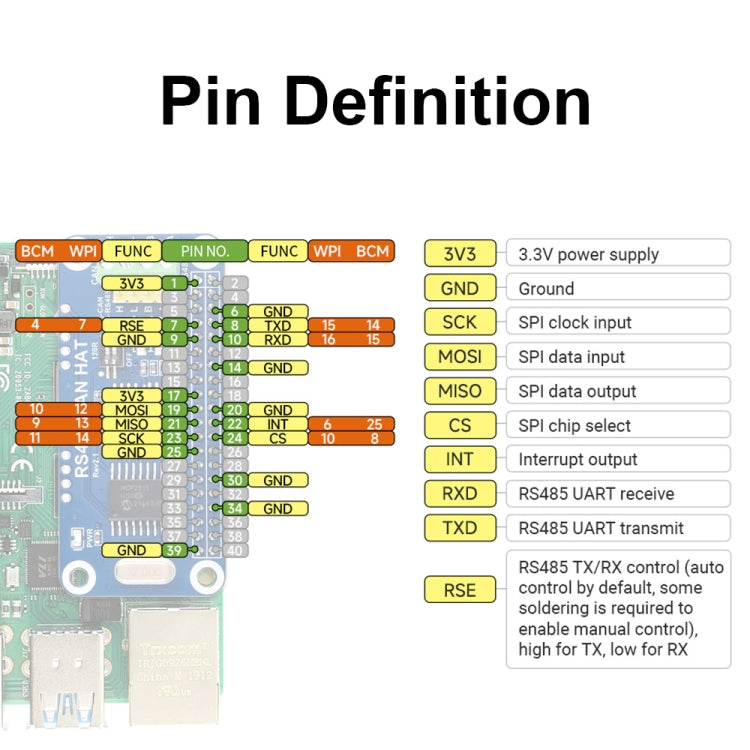

- Based on Raspberry Pi 40 PIN GPIO interface
- CAN function using SPI interface with MCP2515 controller
- Transceiver for CAN: SIT65HVD230DR3
- RS485 function using UART control with half-duplex communication
- Transceiver for RS485: SP34854
- Onboard 120 ohm terminal resistors for RS485 and CAN interfaces
- DIP switch for enabling terminal resistors

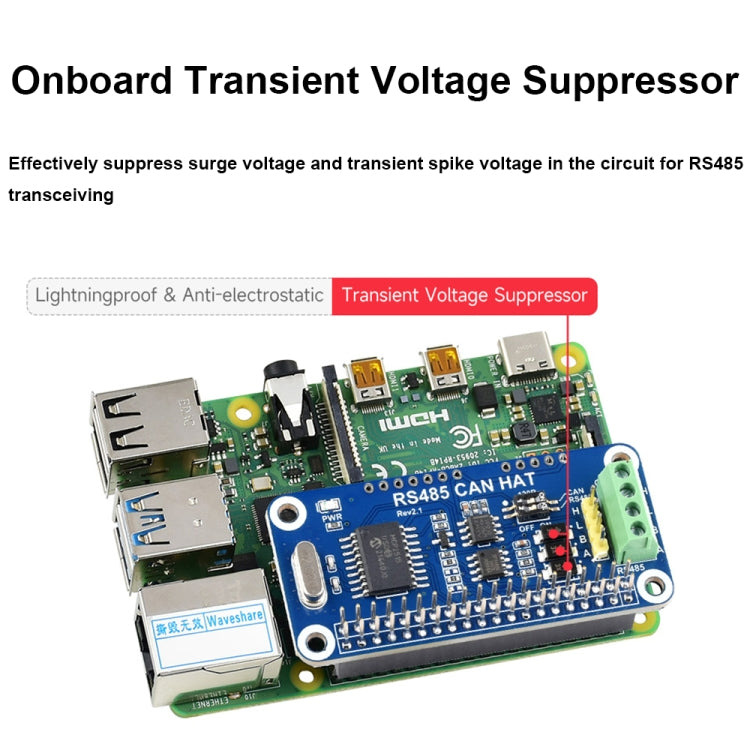

- Onboard transient voltage suppression (TVS) for surge voltage protection
- Working voltage: 3.3V

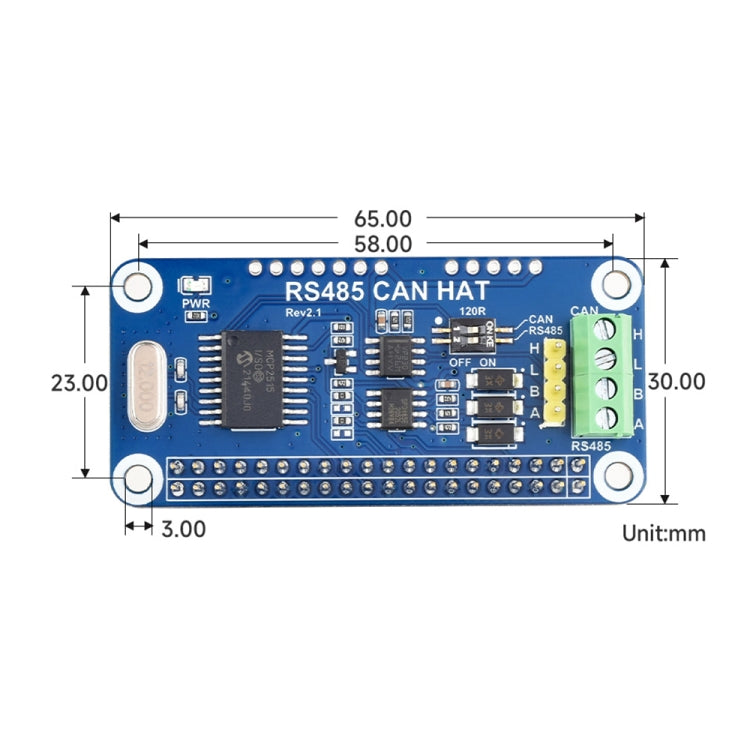

- Product dimensions: 65 x 30 mm
- Weight: 18 g

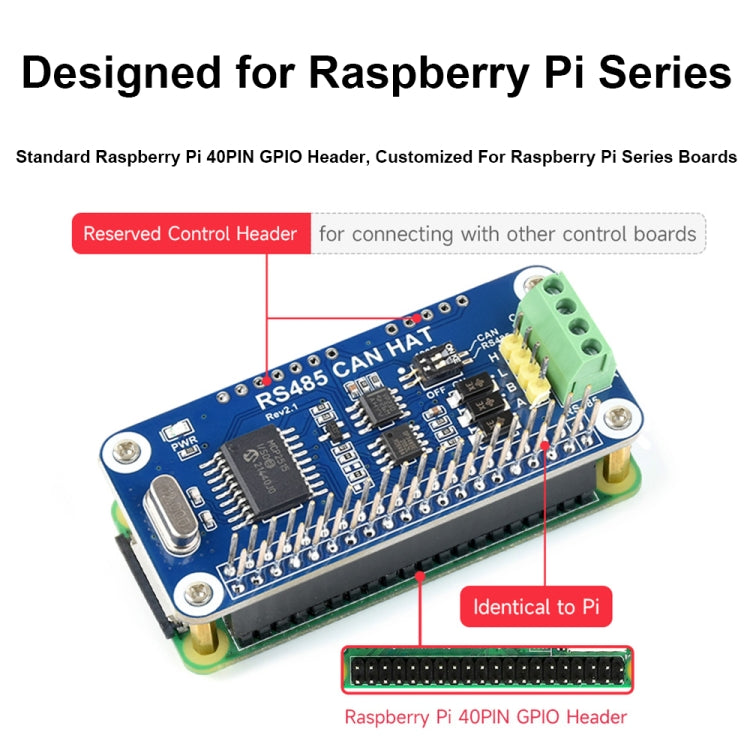

- Reserved control interface for additional controller integration
