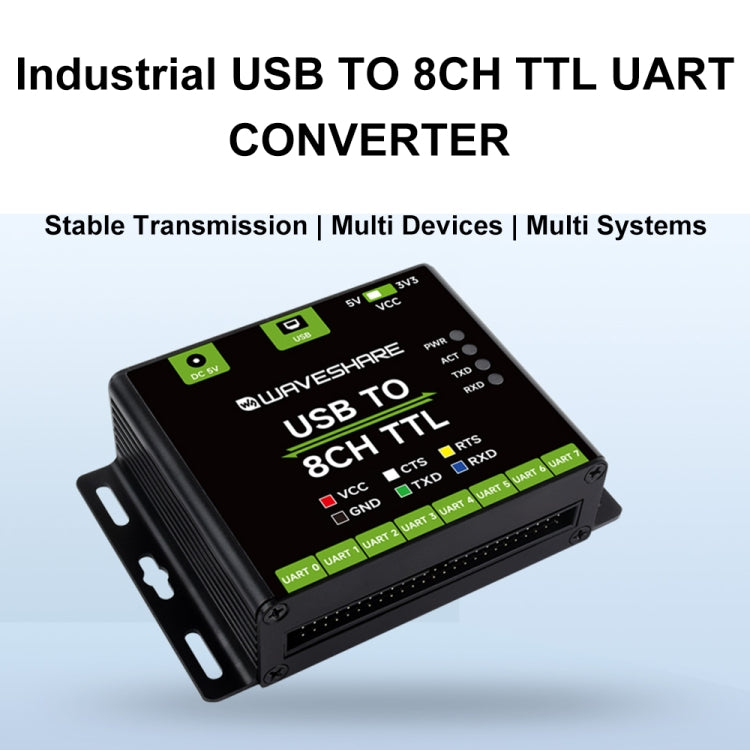

Waveshare 27076 Industrial USB TO TTL UART Serial Communication Module Converter(USB TO 8CH TTL)
Waveshare 27076 Industrial USB TO TTL UART Serial Communication Module Converter(USB TO 8CH TTL)
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
Features:
1. Support USB expansion 8-way TTL (UART) with hardware flow control, can communicate simultaneously and independently

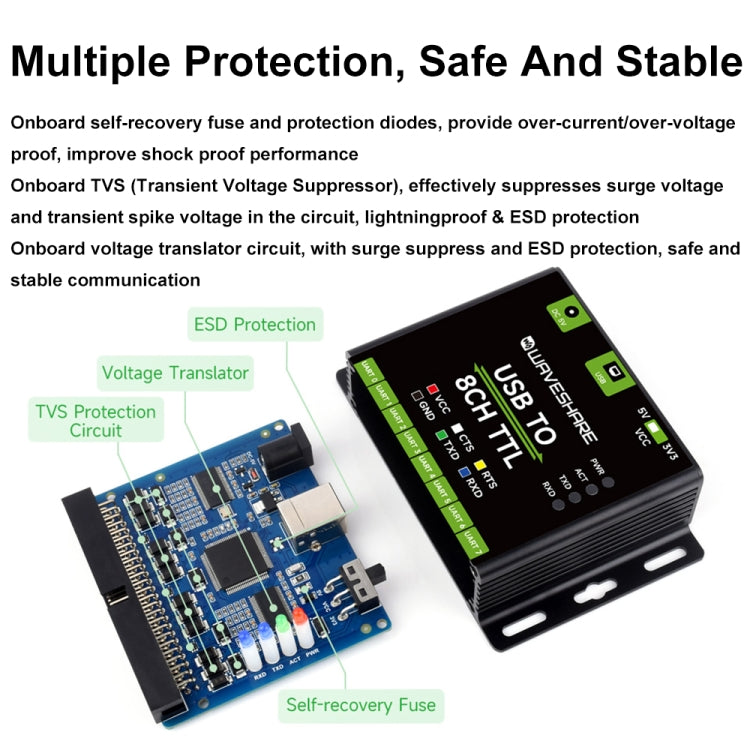

2. Onboard self-recovery fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve impact resistance
3. Onboard TVS protection circuit can effectively suppress surge voltage and transient spike voltage in the circuit, lightning protection and anti-static
4. Onboard level conversion circuit, surge protection, anti-static, stable and safe communication
5. Onboard TTL serial port 3.3V and 5V level conversion circuit, can switch TTL communication level

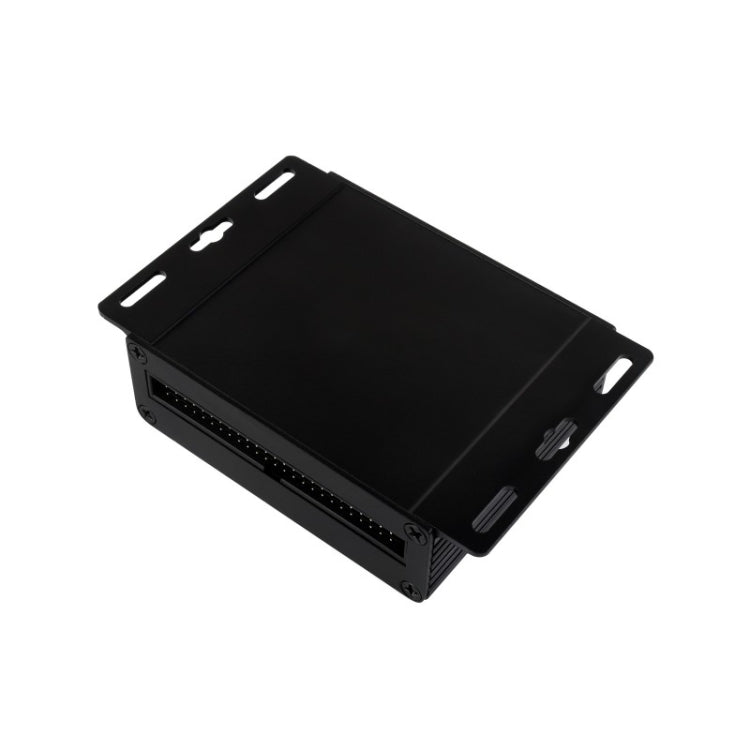

6. Aluminum alloy shell, oxidized frosted treatment, CNC numerical control opening, firm and durable, exquisite workmanship
7. External 4 LED indicators, convenient for checking power supply and signal receiving and sending status
Product parameters:
1. Host interface: USB
2. Device interface: TTL (UART)
3. Communication range: 1200bps-2M
4. Temperature range: -40 degrees Celsius to 85 degrees Celsius
5. Humidity range: 5%RH-95%RH
6. Operating system: Mac, Linux, Android, Windows11/10/8.1/8/7

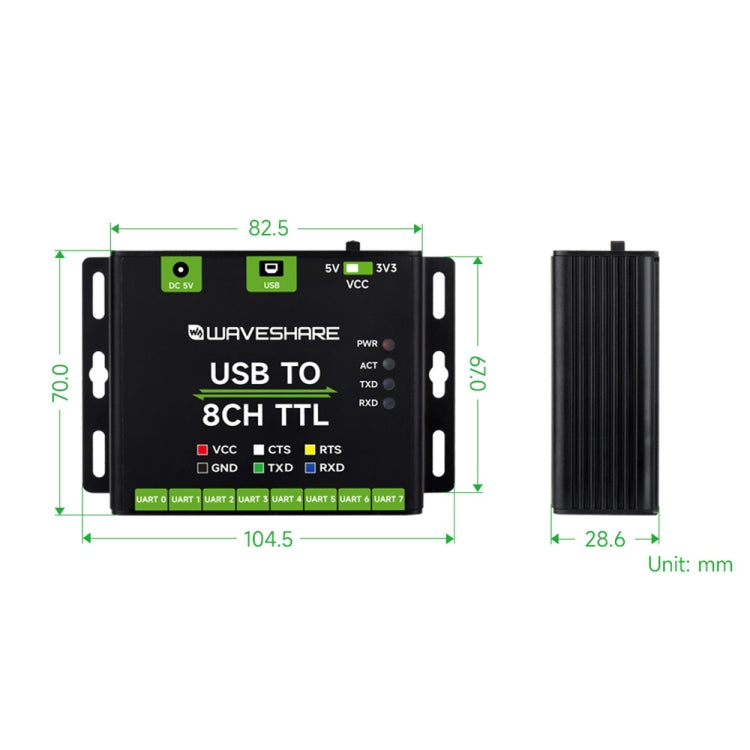

7. Product size: 104.5 x 70 x 28.6mm

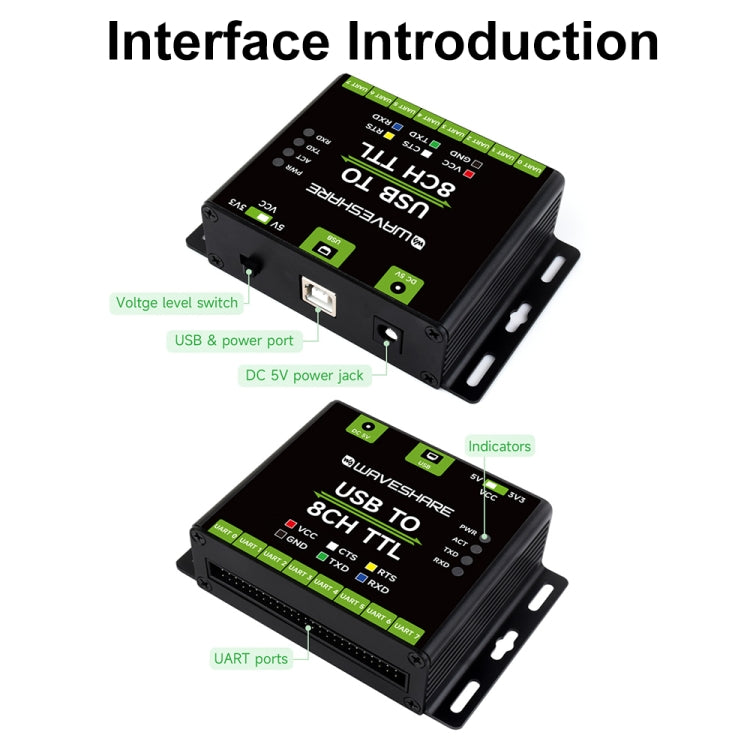

-USB interface
Working level: 5V
Interface type: USB-B type interface
Interface protection: 200mA self-recovery fuse, ESD static protection
-Power supply interface
Interface type: 5VDC power socket
Interface protection: overvoltage protection, reverse connection protection

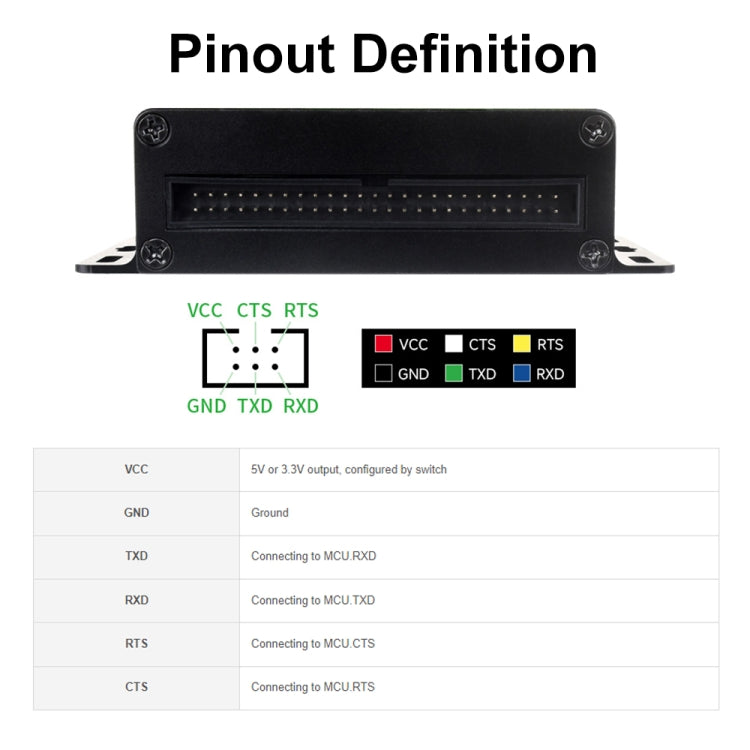

-TTL (UART) interface
Interface type: 50PlN reverse connection interface
Interface protection: TVS tube protection, surge and static protection
Serial port TTL level 3.3V/5V (adjustable)
