WAVESHARE

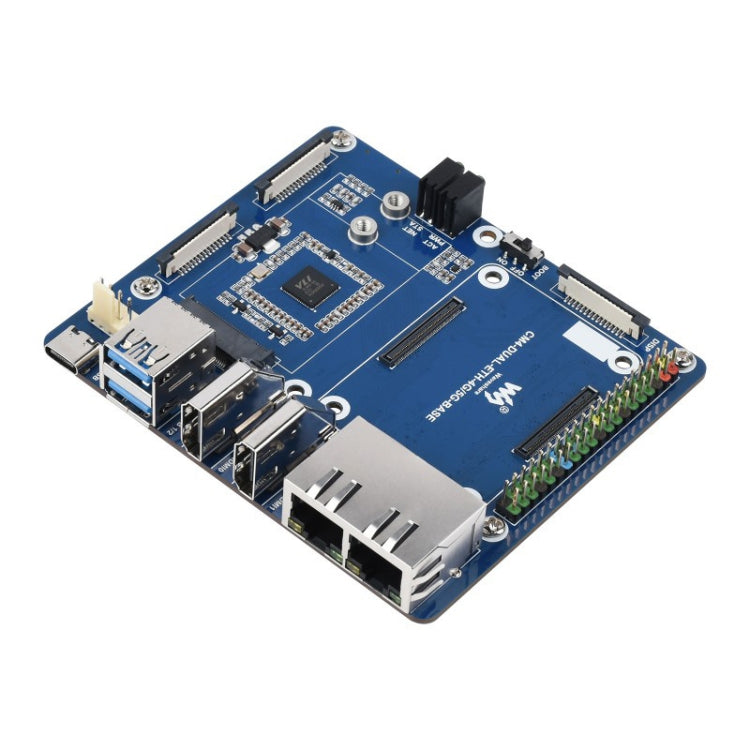

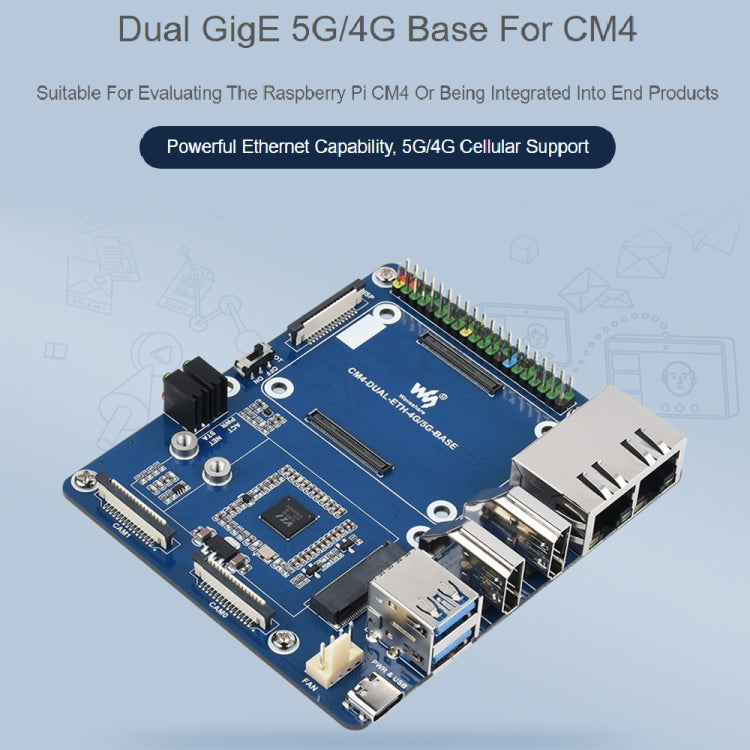

Waveshare Dual Gigabit Ethernet 5G / 4G Base Board for Raspberry Pi CM4

Name: Waveshare Dual Gigabit Ethernet 5G / 4G Base Board for Raspberry Pi CM4
Brand: WAVESHARE
SKU: DIY0228
Price: 1229.00 ZAR
Availability: InStock

R 1,229.00

Sale Sold out

FREE DELIVERY on all orders.

Quantity

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

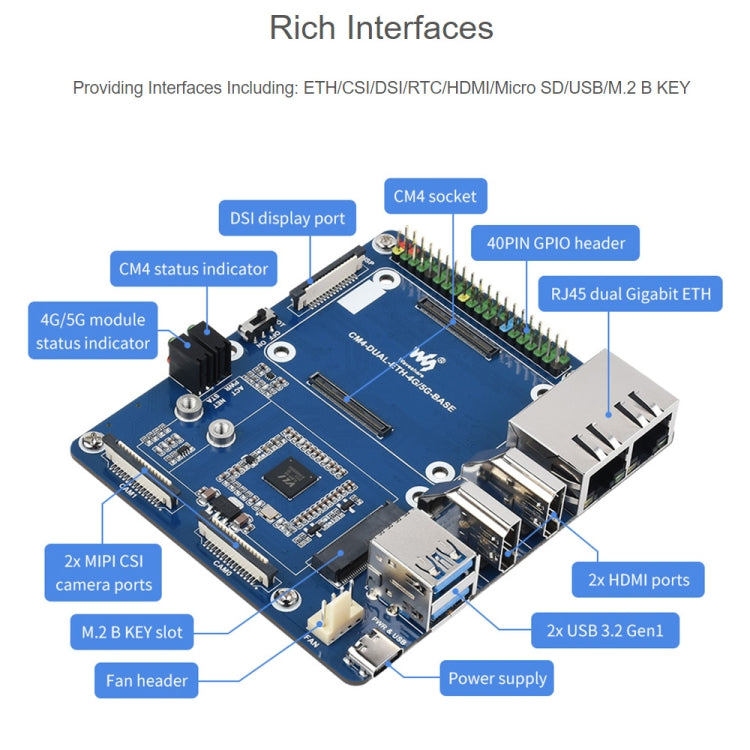

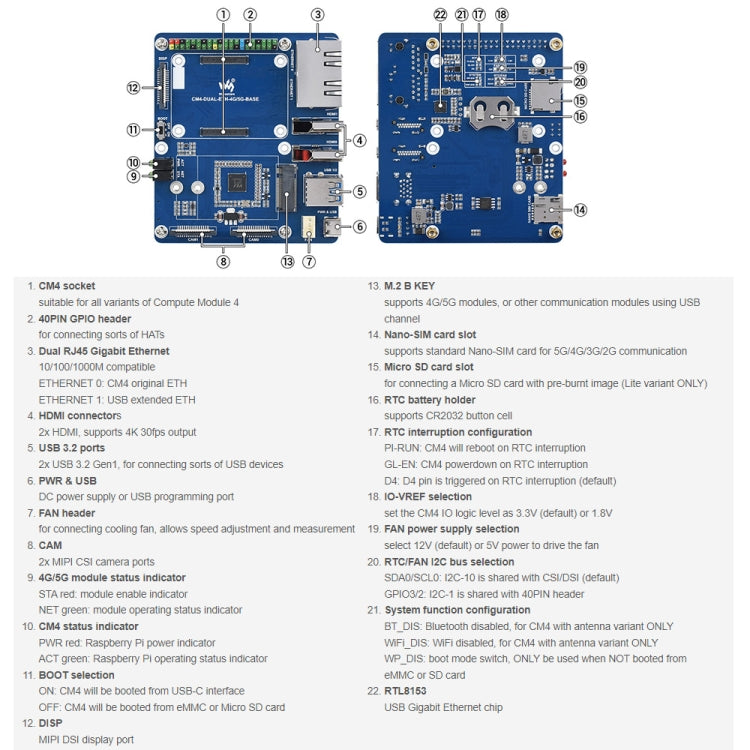

Specifications

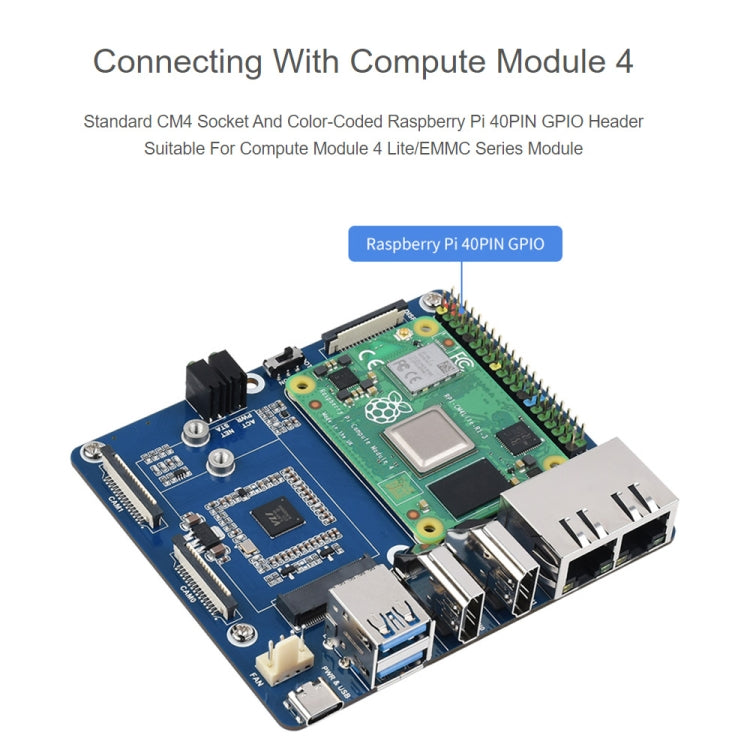

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Network:
- Ethernet: Dual Gigabit Ethernet RJ45
- M.2 B KEY, for connecting 5G / 4G module
- Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB 3.2 Gen1 x 2
4. PIN header: Raspberry Pi 40PIN GPIO headerx 1
5. Display: MIPI DSI port (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
7. Video: HDMI x 2, supports 4K 30fps output

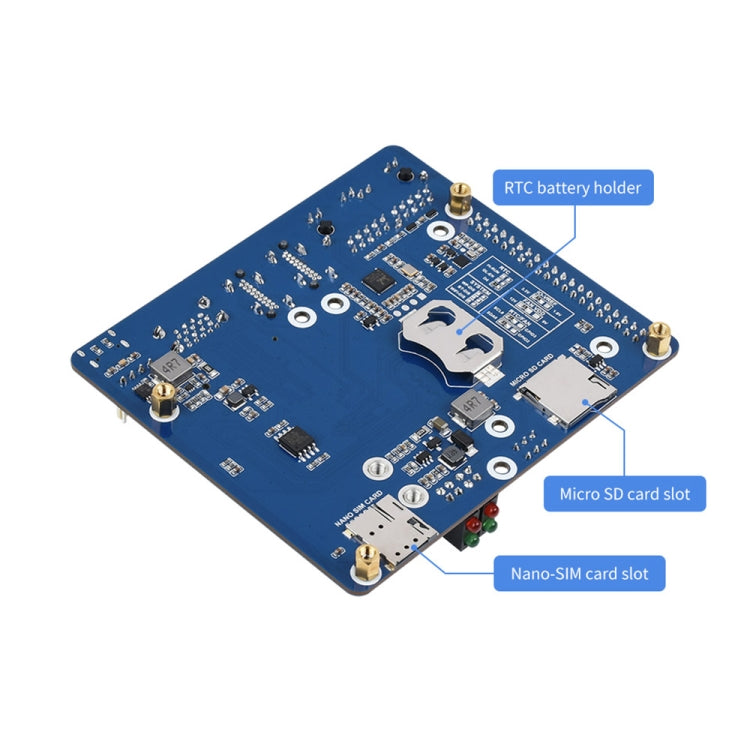

8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
9. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V/2.5A
12. Size: 99.6 x 87.0mm
