Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Sale
Sold out
Pre-order
Regular price
R 2,339.00
Regular price
Sale price
R 2,339.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Mini PC Accessories
• Brand: WAVESHARE
• Compatibility: Raspberry Pi CM4
• Material: Not specified
• Key feature: Industrial expansion module
• Color/Variant: Not specified
• Intended use: IoT applications
• Category: Consumer Electronics

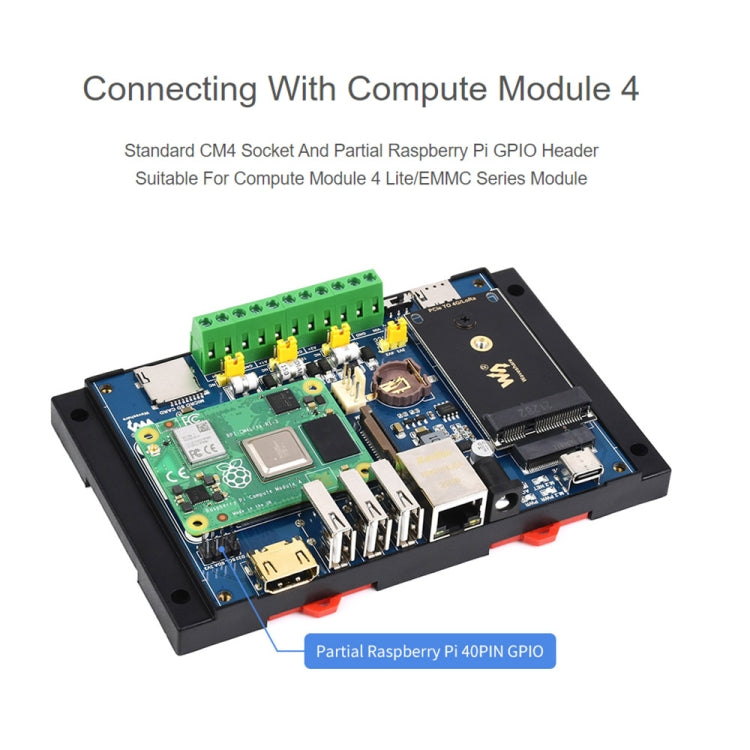

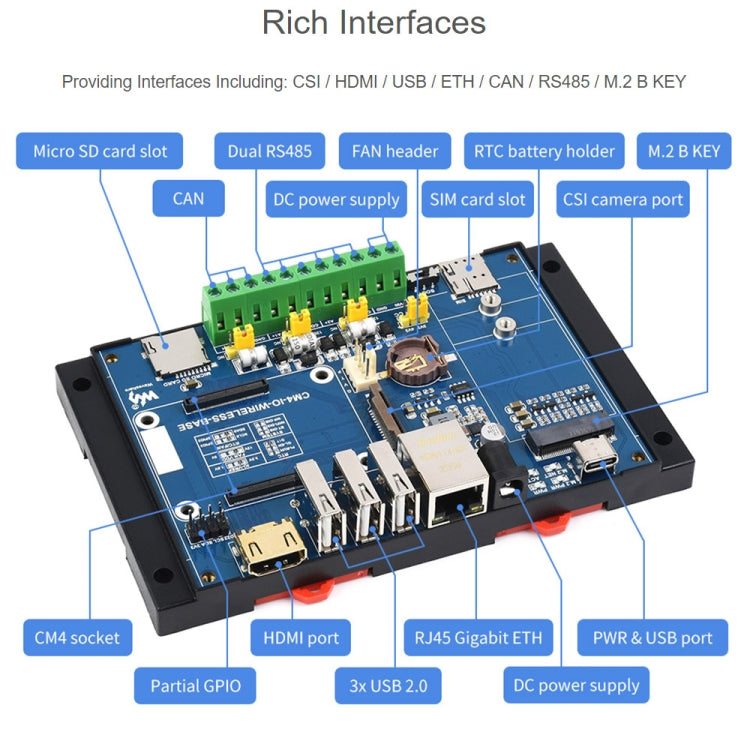

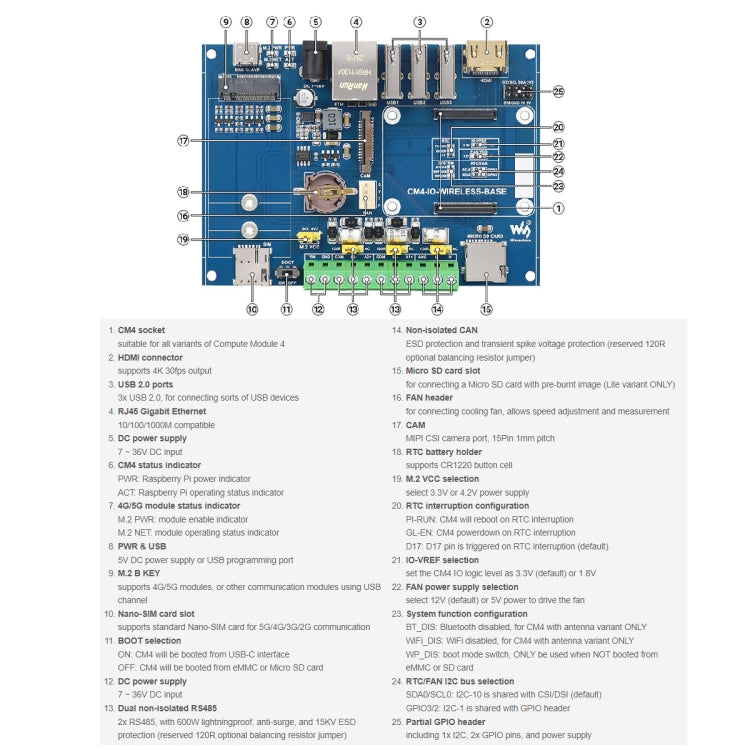

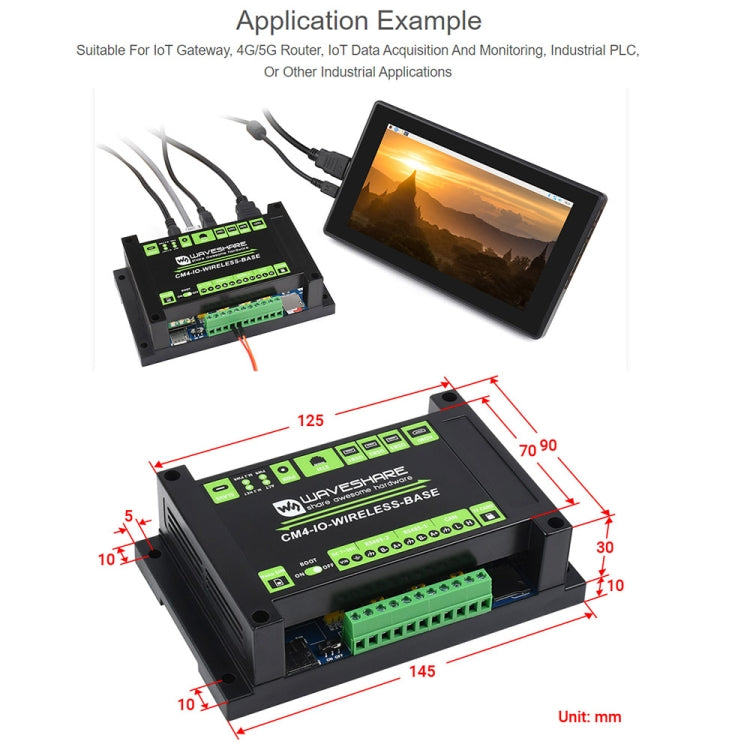

About The ProtuctThis is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC. Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.Specifications1. CM4 socket: For all variants of Compute Module 4 2. Networking: - Gigabit Ethernet RJ45 - M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module - Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication 3. USB: USB 2.0 x 3 4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins 5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector) 6. Video: HDMI x 1, support 4K 30fps output 7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4 8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 9. Fan header: 5V/12V, allows speed adjustment and measurement 10. Power input: 5V or 7~36V 11. Dimensions: 145 x 90 x 40mmPackage List1. CM4-IO-WIRELESS-BASE x 1 2. PCIe to 4G/LoRa adapter x 1 3. Screwdriver x 1 4. Screws pack x 1 5. 12V 2A power adapter x 1
• Brand: WAVESHARE
• Compatibility: Raspberry Pi CM4
• Material: Not specified
• Key feature: Industrial expansion module
• Color/Variant: Not specified
• Intended use: IoT applications
• Category: Consumer Electronics
About The ProtuctThis is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC. Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.Specifications1. CM4 socket: For all variants of Compute Module 4 2. Networking: - Gigabit Ethernet RJ45 - M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module - Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication 3. USB: USB 2.0 x 3 4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins 5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector) 6. Video: HDMI x 1, support 4K 30fps output 7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4 8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 9. Fan header: 5V/12V, allows speed adjustment and measurement 10. Power input: 5V or 7~36V 11. Dimensions: 145 x 90 x 40mmPackage List1. CM4-IO-WIRELESS-BASE x 1 2. PCIe to 4G/LoRa adapter x 1 3. Screwdriver x 1 4. Screws pack x 1 5. 12V 2A power adapter x 1
Questions about features, compatibility, or warranty? Chat with our support team!
