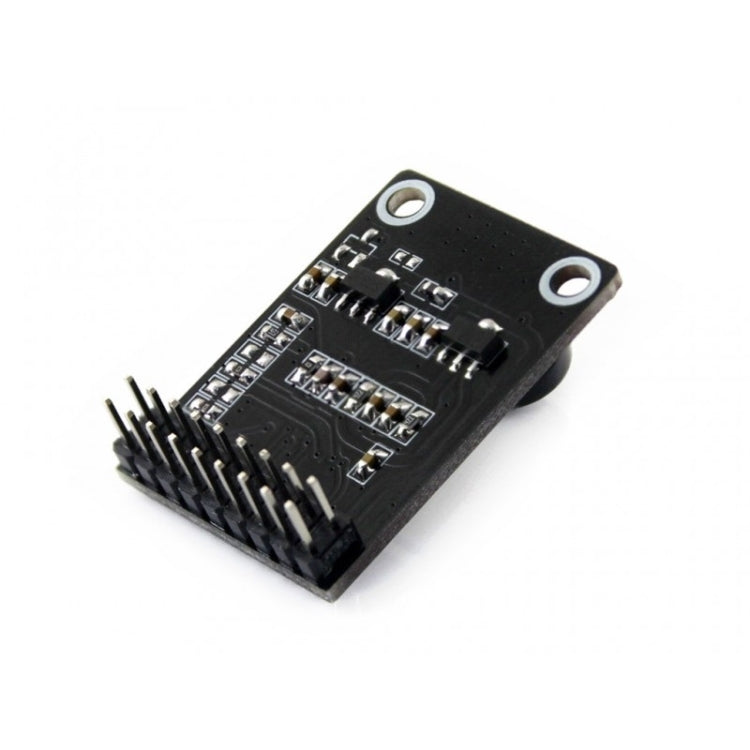

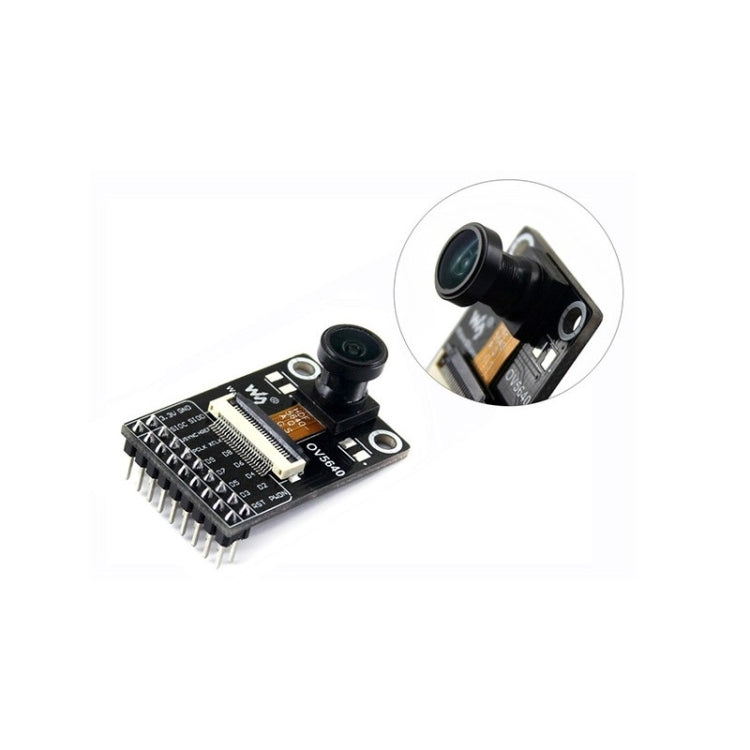

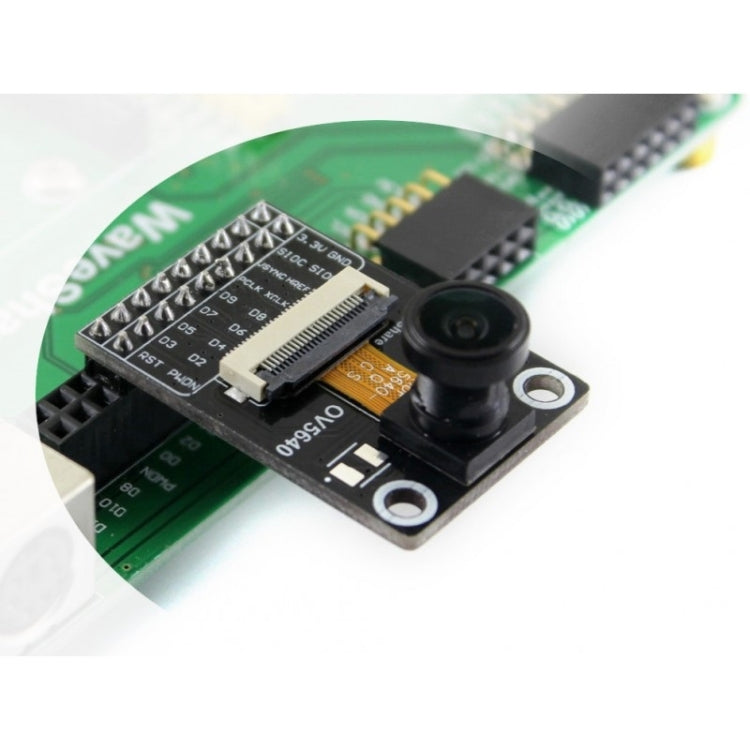

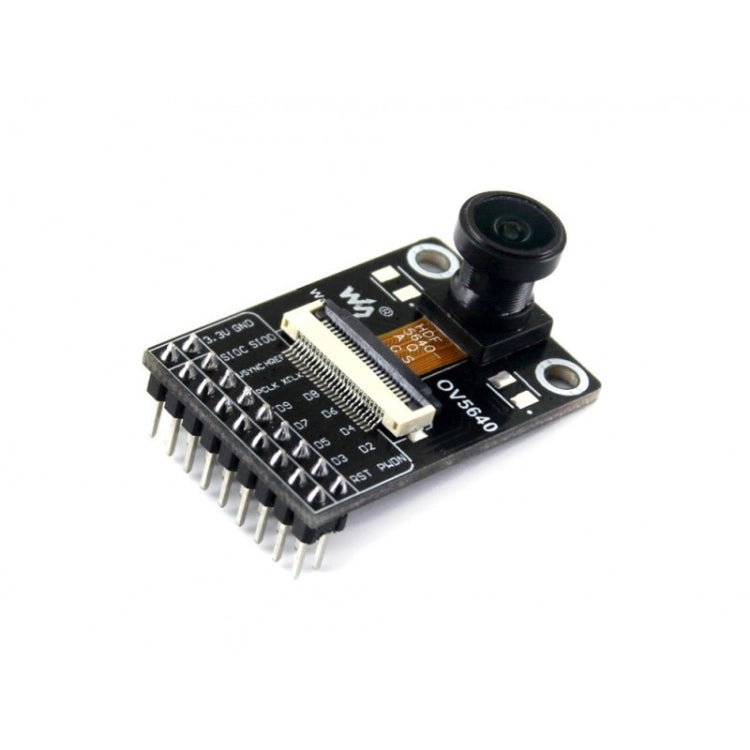

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R169.55/mo 3 months
- R85.73/mo 6 months
- R45.25/mo 12 months
- From R169.55/month over 3 months, or as low as R45.25/month over 12. Total repayable over 12 months: R543.0. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
The Waveshare OV5640 Camera Board is a 5-megapixel camera module designed for electronic applications. It is suitable for everyday use in various projects requiring high-resolution imaging.
- Product Type: Camera Module
- Compatibility: OV5640
- Material: Not specified
- Resolution: 2592 x 1944 pixels
- Sensor: OV5640 with 1.4um x 1.4um pixel size, OmniBSI technology
- Features: High sensitivity, low crosstalk, low noise, automatic image control functions (AEC, AWB, ABF, ABLC), image quality controls (color saturation, hue, gamma, sharpness, lens correction)
- Lens: 1/4 inch CCD size, aperture (F) 2.5, focal length 2.0mm, diagonal 170 degrees (fisheye)
- Output Formats: YUV (422/420), YCbCr422, RGB565/555/444, CCIR656, RAW RGB, Compressed Data
- Operating Voltage: 3.3V
- Control Interface: SCCB (I2C compatible)
- Data Interface: DVP 8-bit
- Dimensions: 35.70mm x 23.90mm
