Description

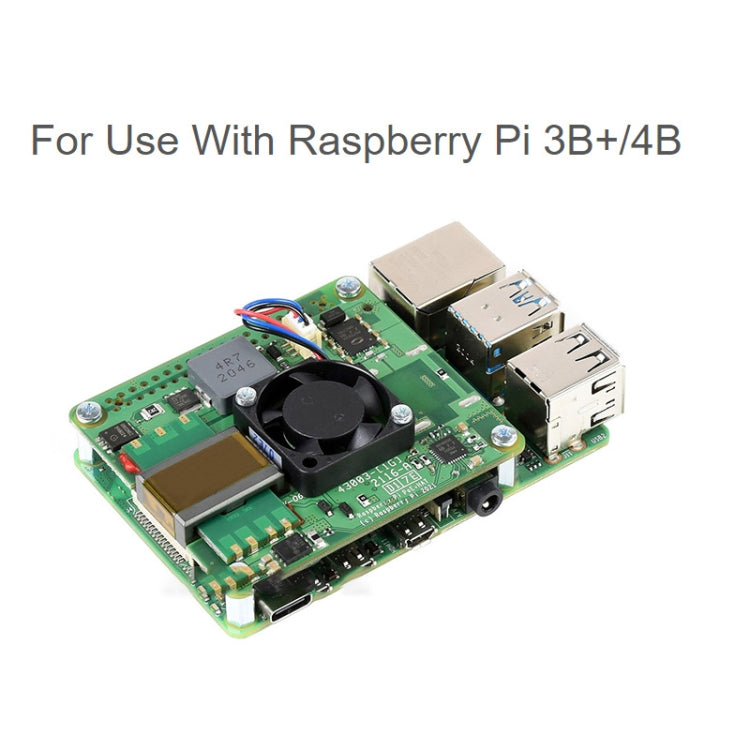

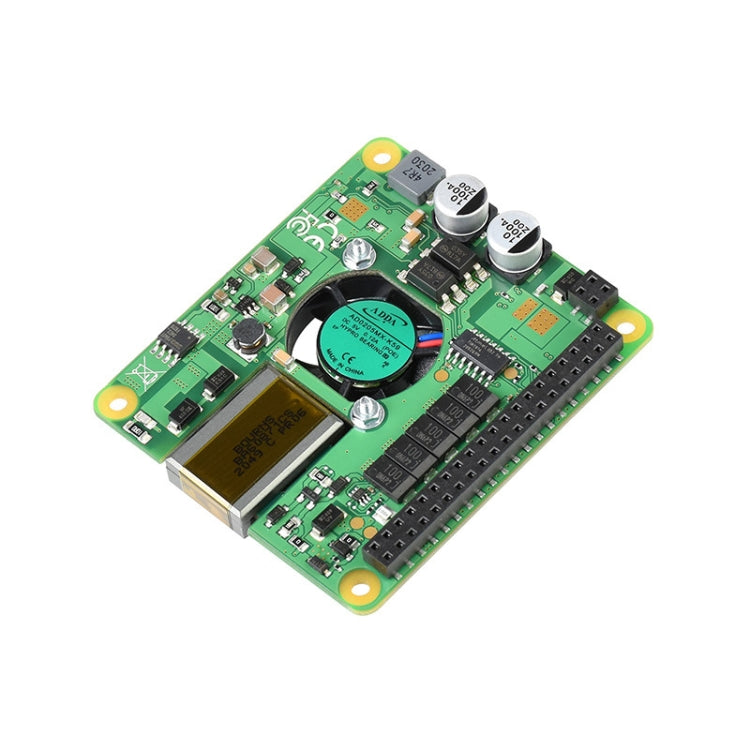

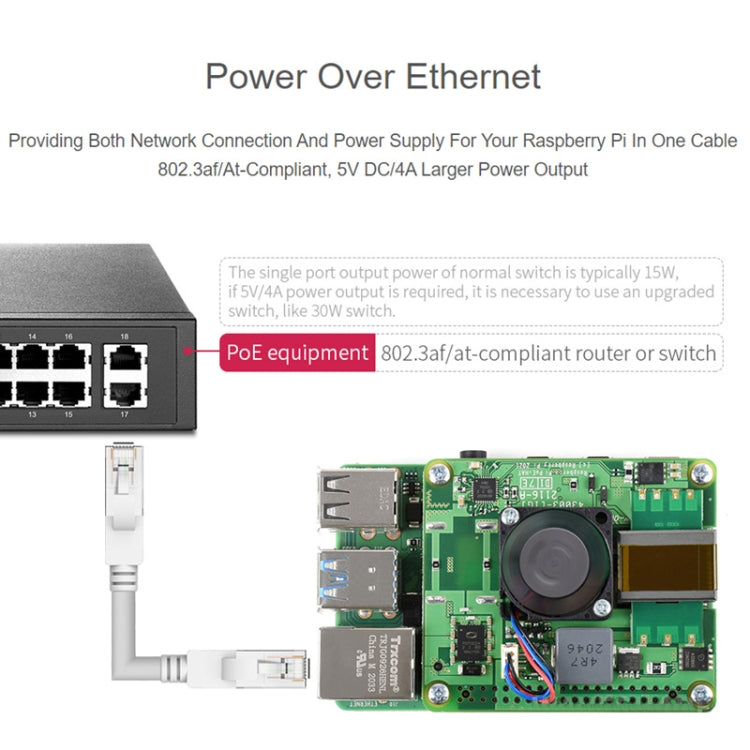

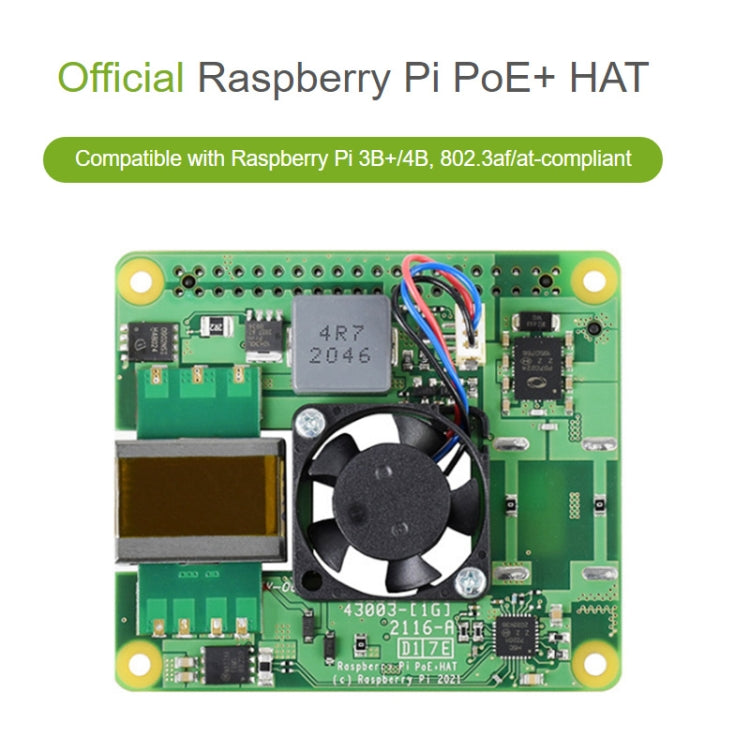

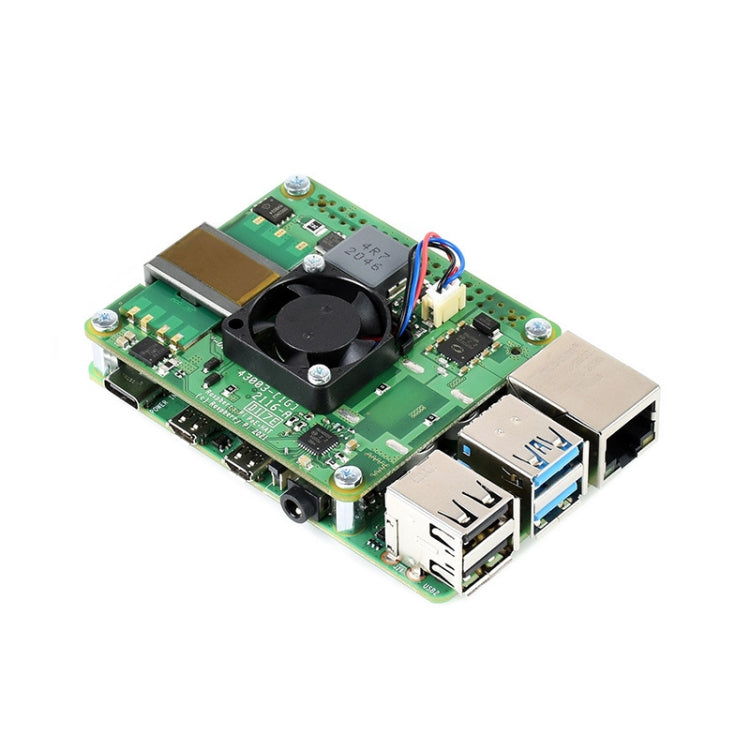

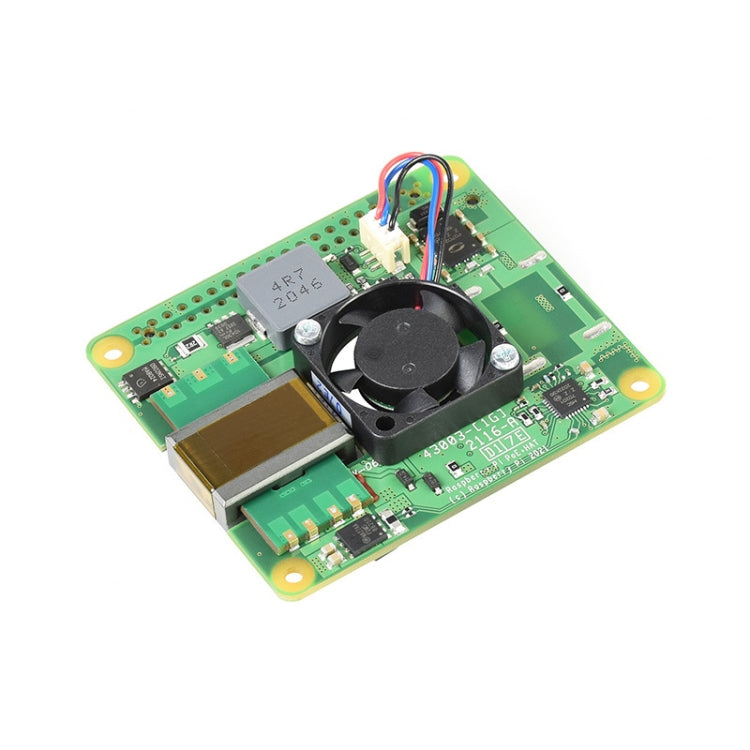

The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory designed for the Raspberry Pi 3B+/4B. It enables power and network connectivity through a single Ethernet cable, simplifying installation and reducing cable clutter.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi 3B+/4B
- PoE Standard: 802.3af/at
- Input Voltage: 37-57 V DC, Class 4 device
- Output Voltage/Current: 5V DC/4A
- Current Sense: Yes
- Transformer Design: Planar

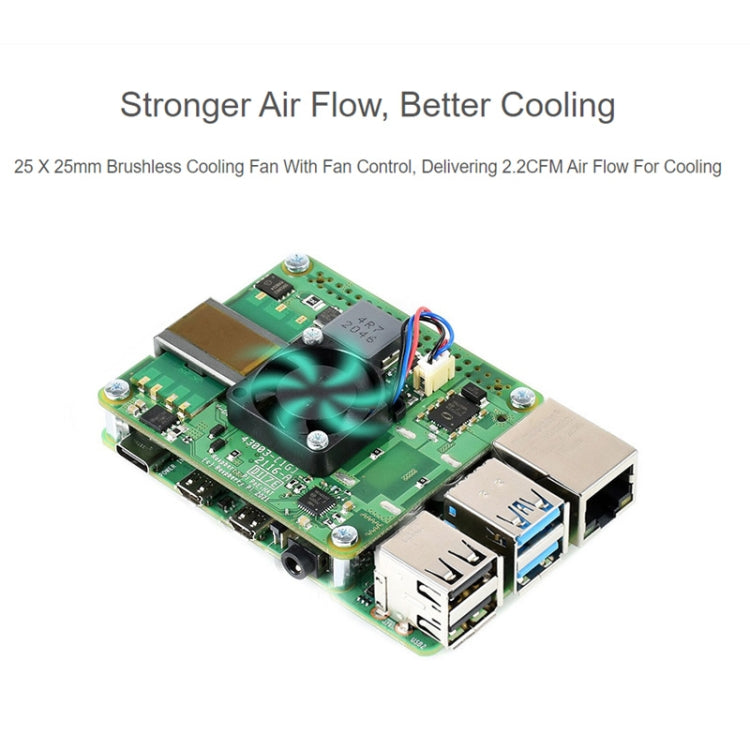

- Fan: Controllable brushless cooling fan, delivering 2.2 CFM for processor cooling
- Fan Size: 25 x 25mm
- Feature: Fully isolated switched-mode power supply
- Package List: Raspberry Pi PoE+ HAT x1, Standoffs pack x1
