Description

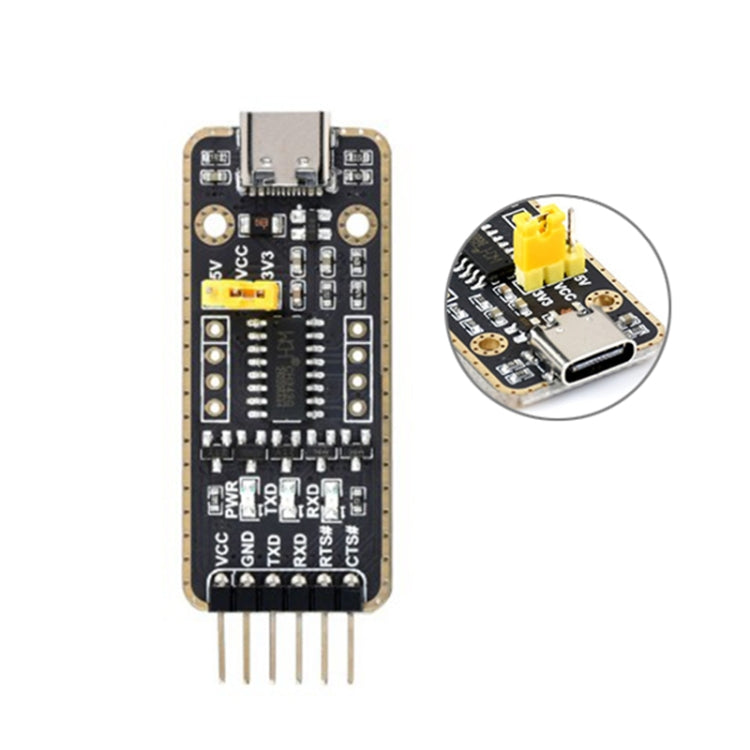

The Waveshare Type-C / USB-C to UART High Band Rate Transmission Module Connectors is an electronic module designed for high-speed data transmission. It is suitable for everyday use in various electronic projects requiring UART communication.
- Product Type: Other Accessories
- Compatibility: USB Type-C
- Material: Not specified
- Key Feature: High band rate transmission
- Color/Variant: Not specified
- Adopts CH343G chip for higher data rates (up to 6Mbps)
- Supports serial port IO levels: 5V, 3.3V, 2.5V, 1.8V

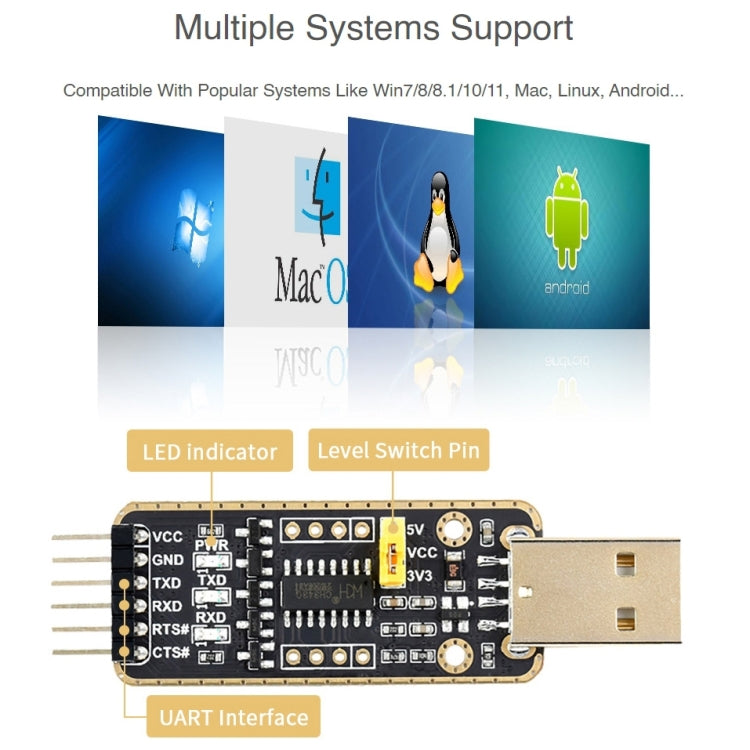

- Compatible with Mac, Linux, Android, Windows 7/8/8.1/10/11

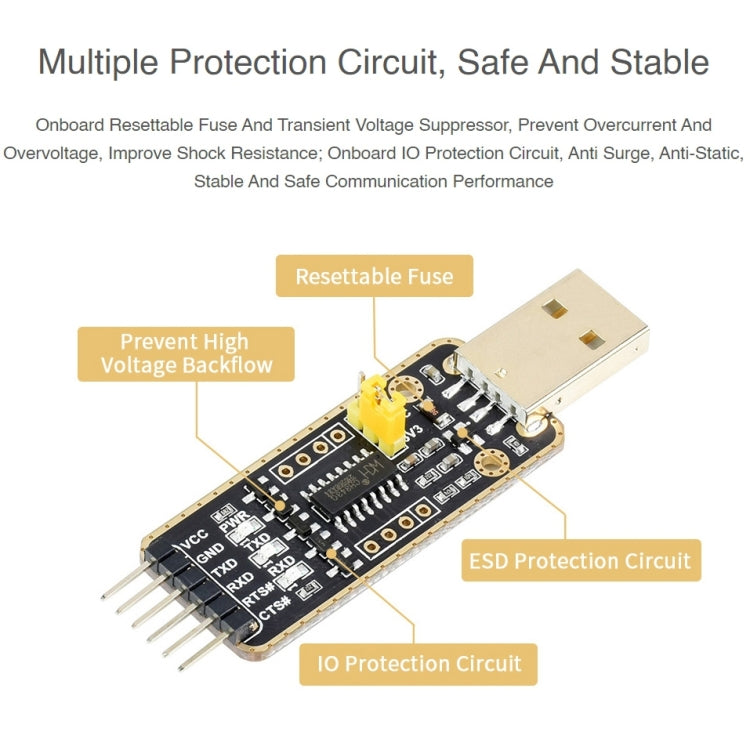

- Onboard resettable Fuse and Transient Voltage Suppressor for protection against overcurrent, overvoltage, and surges
- Onboard IO protection circuits for stable communication performance
- Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
- Supports 3.3V/5V output (powered by USB, jumper configurable)
- Double-sided black immersion gold process for durability
- PWR indicator for power detection from USB interface
- RXD indicator for data reception from device interface
- TXD indicator for data transmission from USB
- Host interface: USB
- Device interface: UART
- Communication range: 50bps to 6Mbps

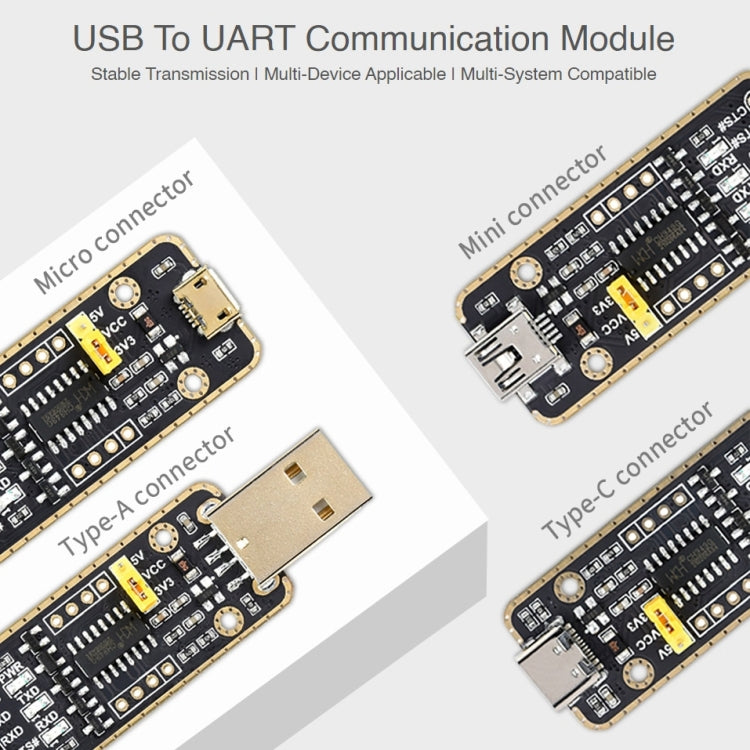

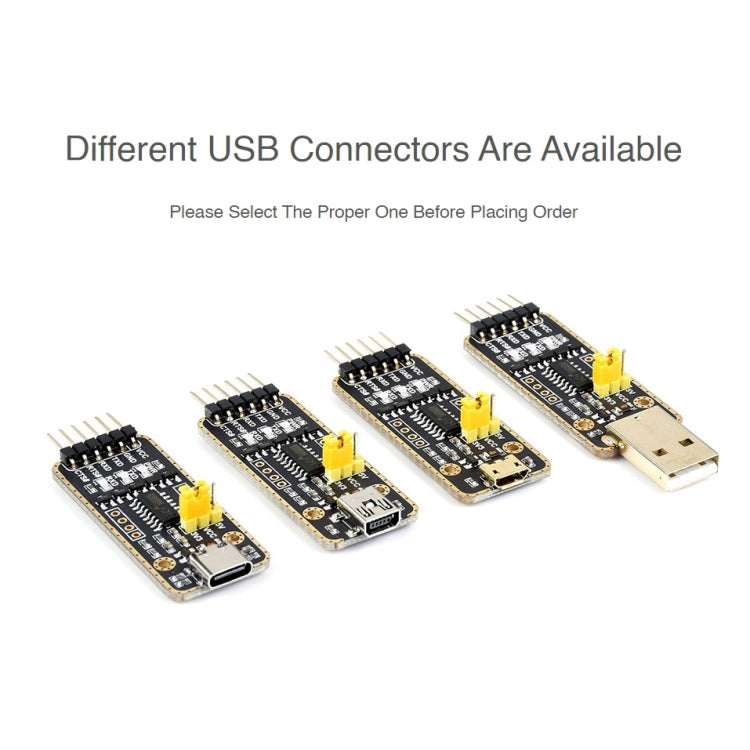

- USB device interface: USB Type-C
- Protection features: resettable Fuse, ESD protection
- UART interface connector: 6-pin right-angle pinheader
- IO protection diode included
