Description

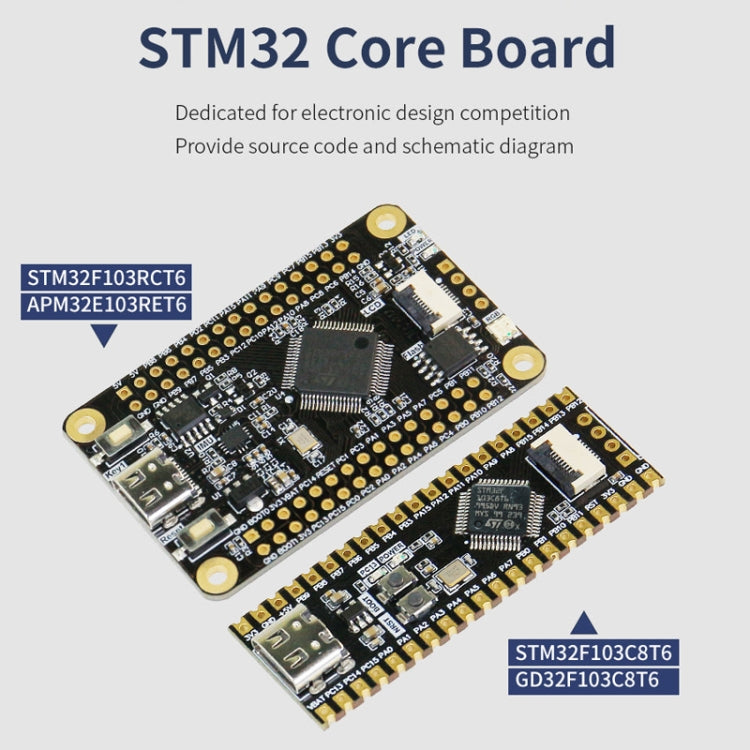

The Yahboom MCU RCT6 Development Board is an ARM system core board designed for various electronic applications. It is suitable for use in electronic design competitions, smart cars, robots, and industrial control systems.

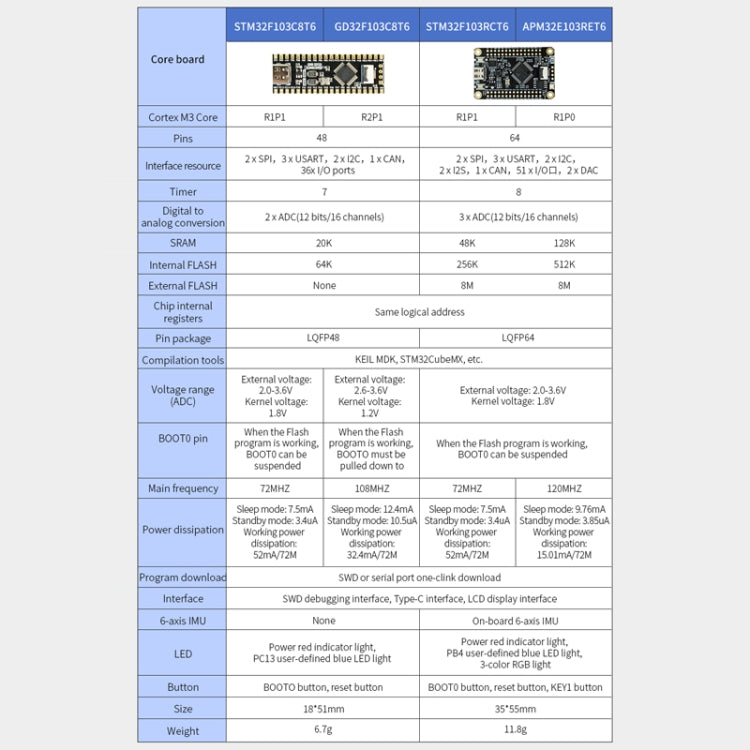

- Microcontroller: STM32F103C8T6, GD32F103C8T6, STM32F103RCT6, APM32E103RET6
- Core: Cortex M3
- Debugging Interface: SWD simulation debugging download interface
- Pin Headers: 1x20 pin headers (C8T6), 2x15 pin headers (RCT6/RET6)

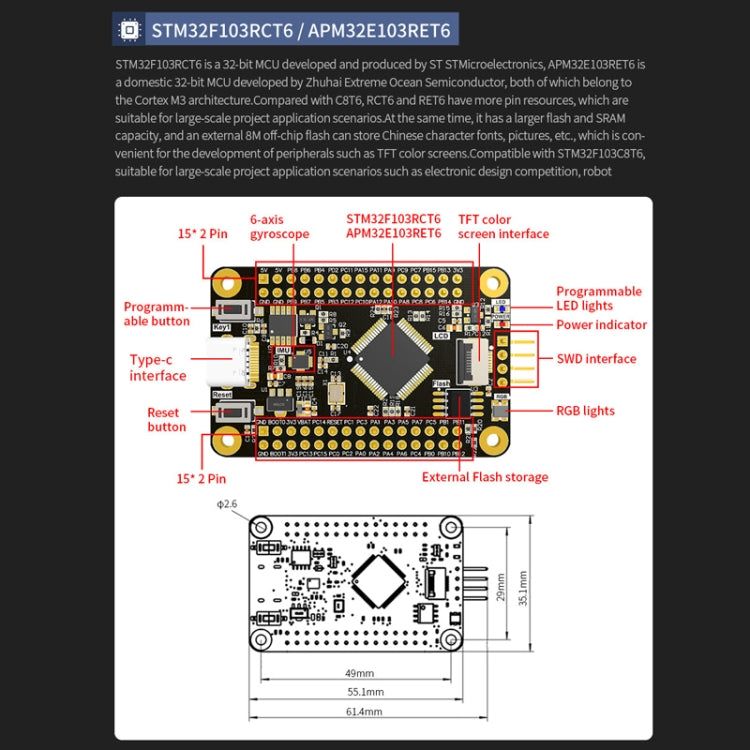

- Size: GD32F103C8T6/STM32F103C8T6 - 18x51mm; APM32E103RET6/STM32F103RCT6 - 35x55mm
- Weight: GD32F103C8T6/STM32F103C8T6 - 6.7 grams; APM32E103RET6/STM32F103RCT6 - 11.8 grams

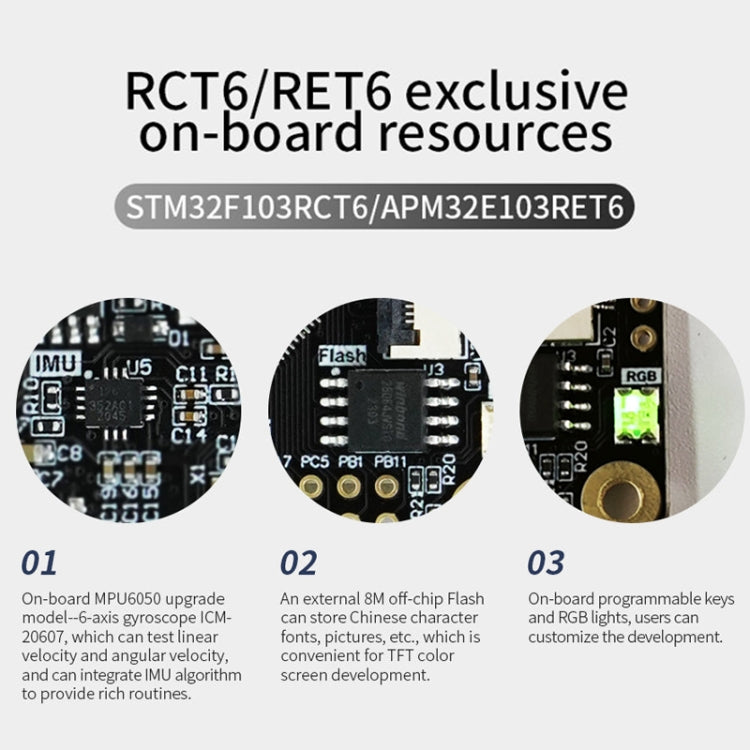

- Onboard IMU: 6-axis IMU for motion attitude detection
- Power Supply: Type-C interface for power supply, program download, and serial communication

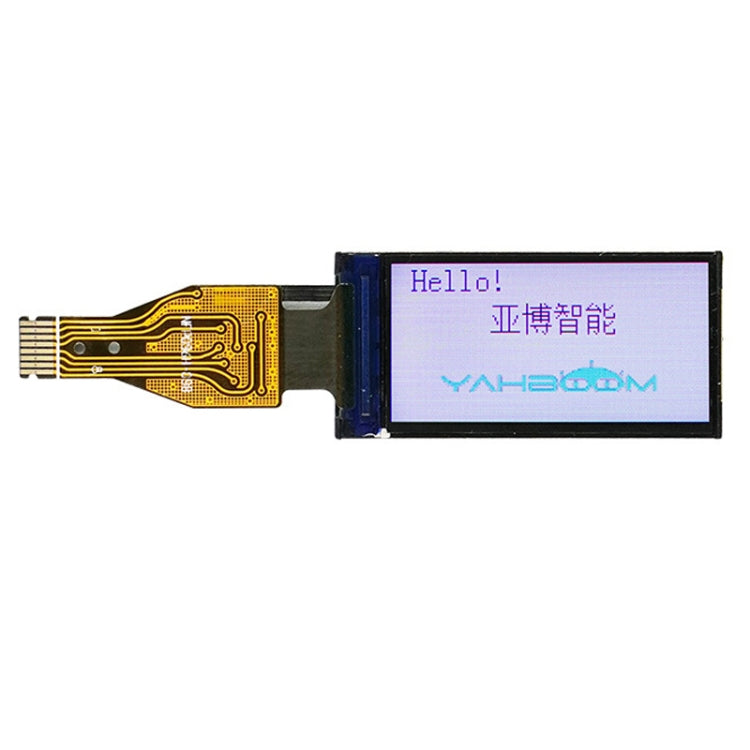

- Display: 0.96-inch TFT color screen with HD IPS LCD
- Display Resolution: 80(H)RGBx160(V)
- Display Color: Full color
- Working Current: 20mA
- Working Voltage: 3.3V
- Working Temperature: -20 to 70 degrees Celsius
- Backlight: Side-lit LED backlight
- Connection Method: Plug-in type 8Pin (0.5mm pitch)
- Pixel Pitch: 0.135(H)x0.1356(V)mm
- Display Area: 10.8(H)x21.7(V)mm
- Panel Size: 13.5(H)x27.95(V)x1.5(D)mm
