Description

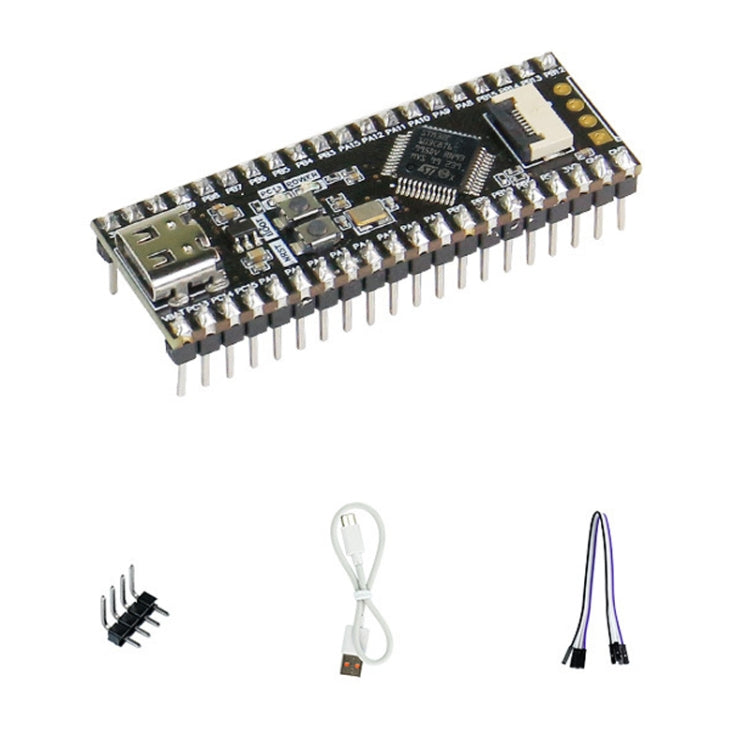

The Yahboom MCU RCT6 Development Board is an ARM system core board designed for various electronic applications. It is suitable for use in electronic design competitions, smart cars, robots, and industrial control systems.
- Model: STM32F103C8T6
- Core: Cortex M3
- CPU Frequency: High
- Power Consumption: Low
- Peripheral Pins: Compatible with STM32F103C8T6
- SWD Debugging Interface: Yes
- JTAG Debugging: Not supported

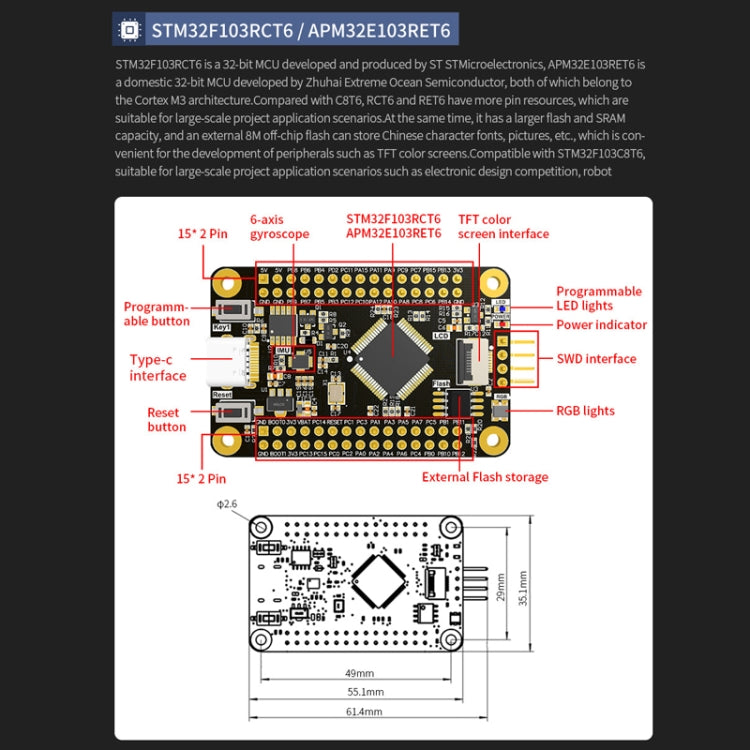

- Size: 18x51mm (GD32F103C8T6/STM32F103C8T6)
- Weight: 6.7 grams (GD32F103C8T6/STM32F103C8T6)
- Type-C Interface: Yes

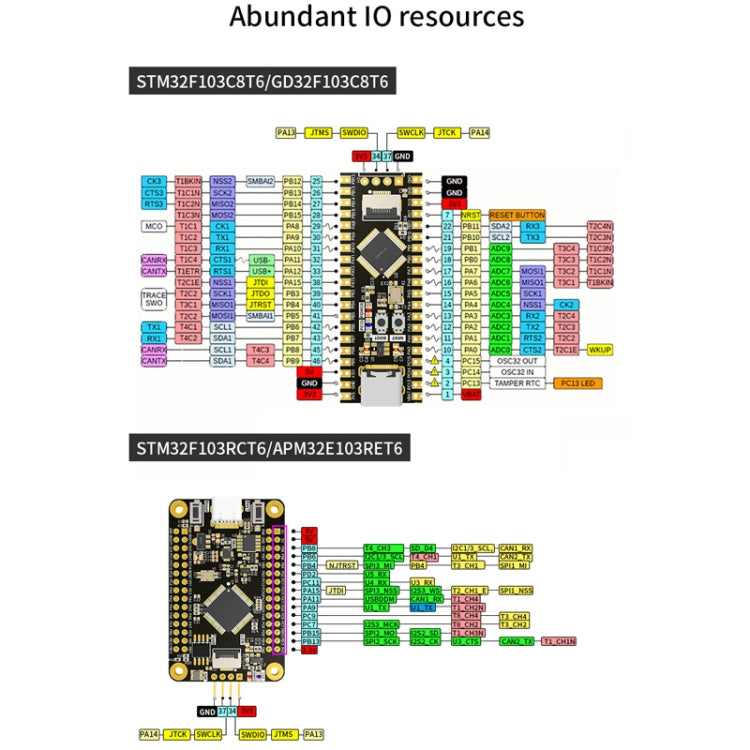

- Pin Headers: 1x20 for C8T6, 2x15 for RCT6/RET6

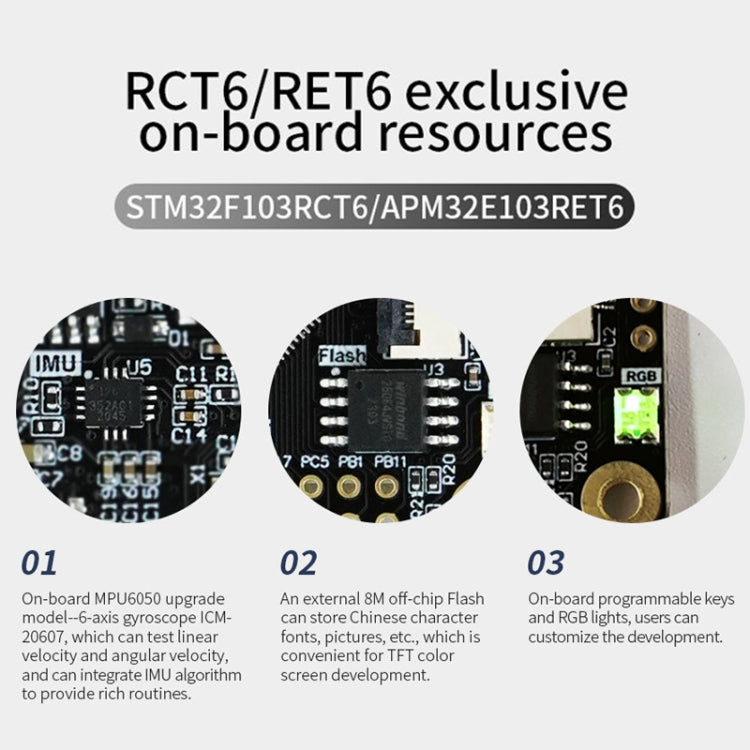

- Onboard IMU: Yes
- FPC Connector: 8P for TFT color display

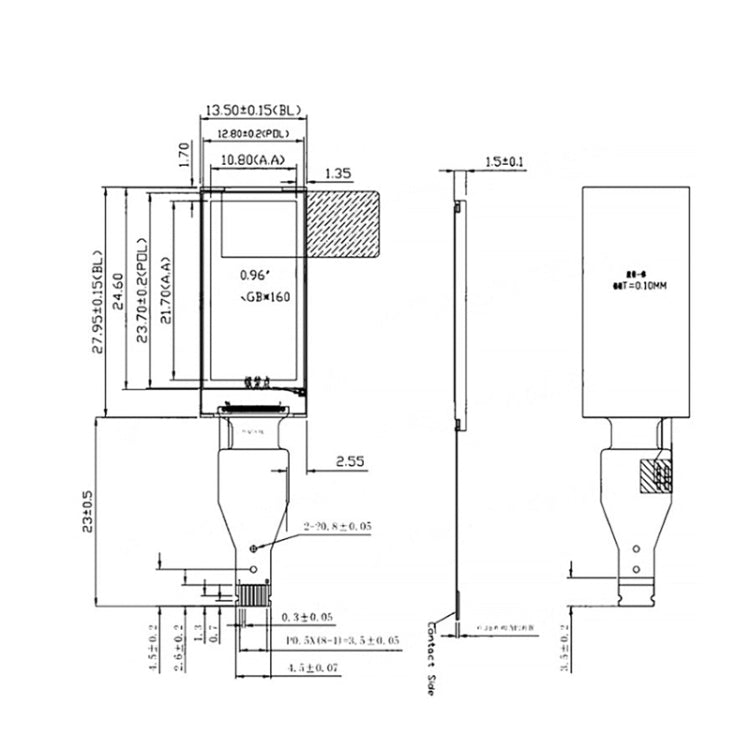

- Display Size: 0.96 inches
- Display Material: HD IPS LCD
- Display Resolution: 80(H)RGBx160(V)
- Driver Chip: ST7735S
- Communication Interface: IIC
- Display Color: Full color
- Working Current: 20mA
- Working Voltage: 3.3V
- Working Temperature: -20 to 70 degrees Celsius
- Backlight Type: Side-lit LED
